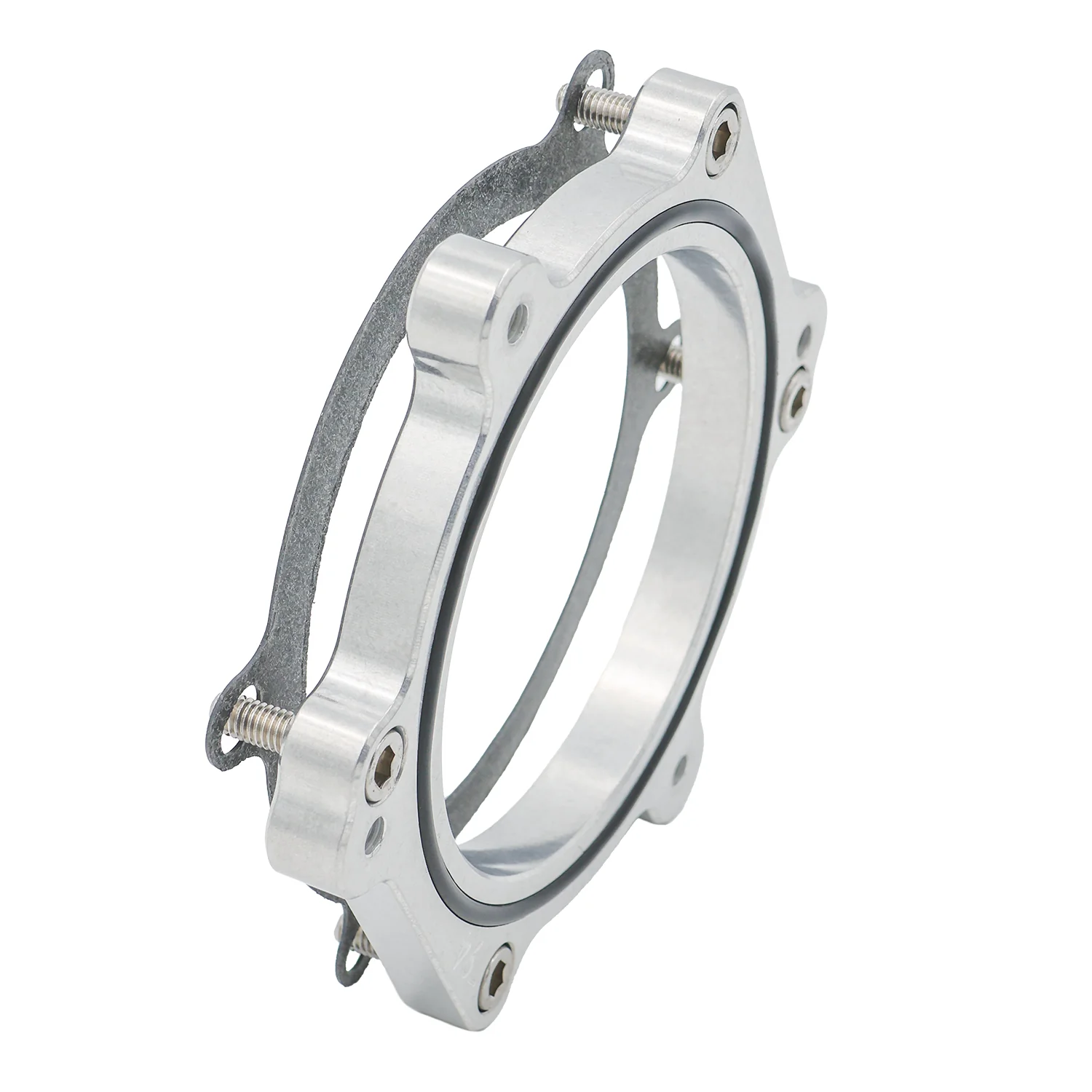

LS/LT1/ LT4 Intake to LT5 Throttle Body Rotation Adapter
LT5 Throttle Body to LT1 Intake (or LT4 Supercharger) Rotation Adapter
Product Details:

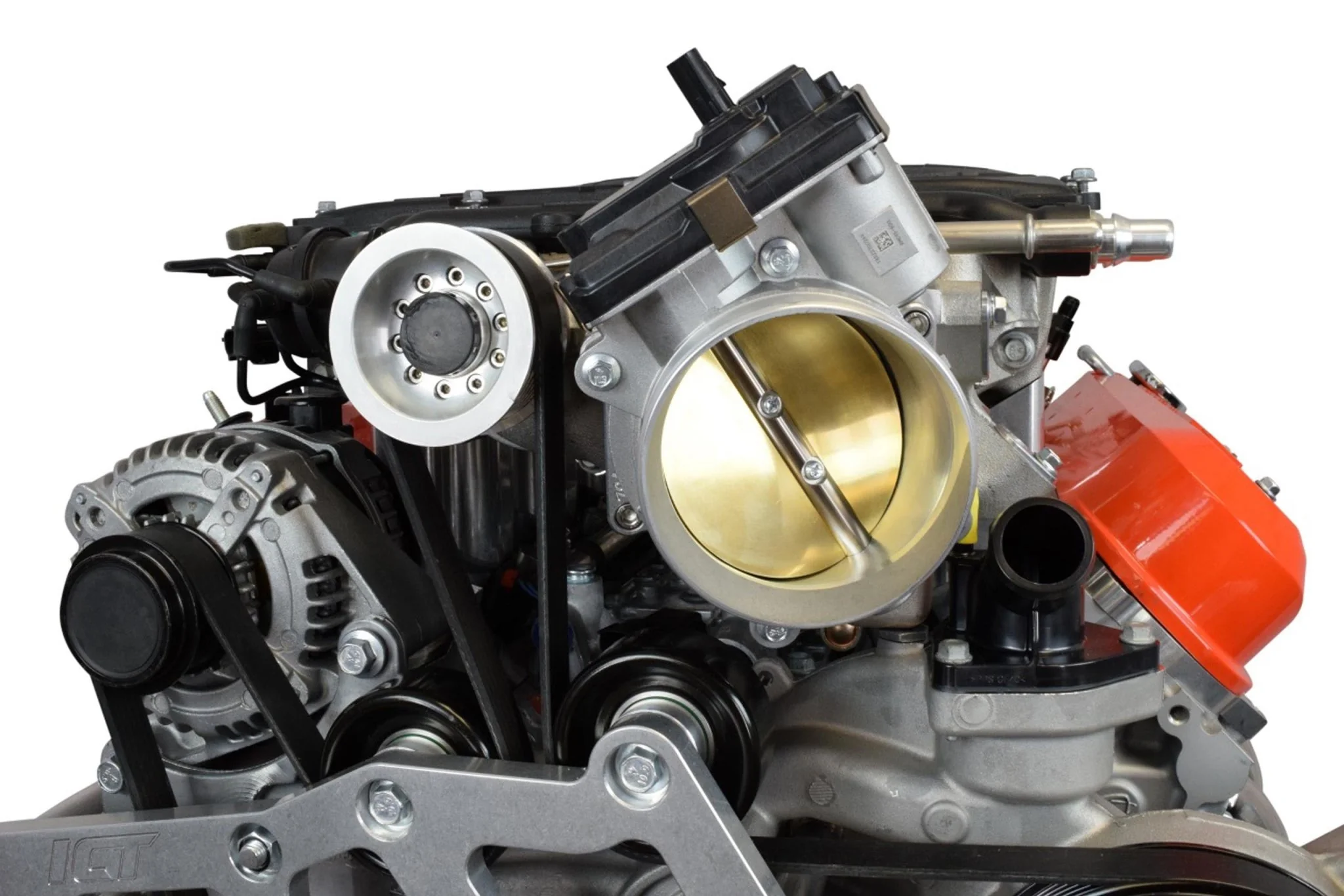

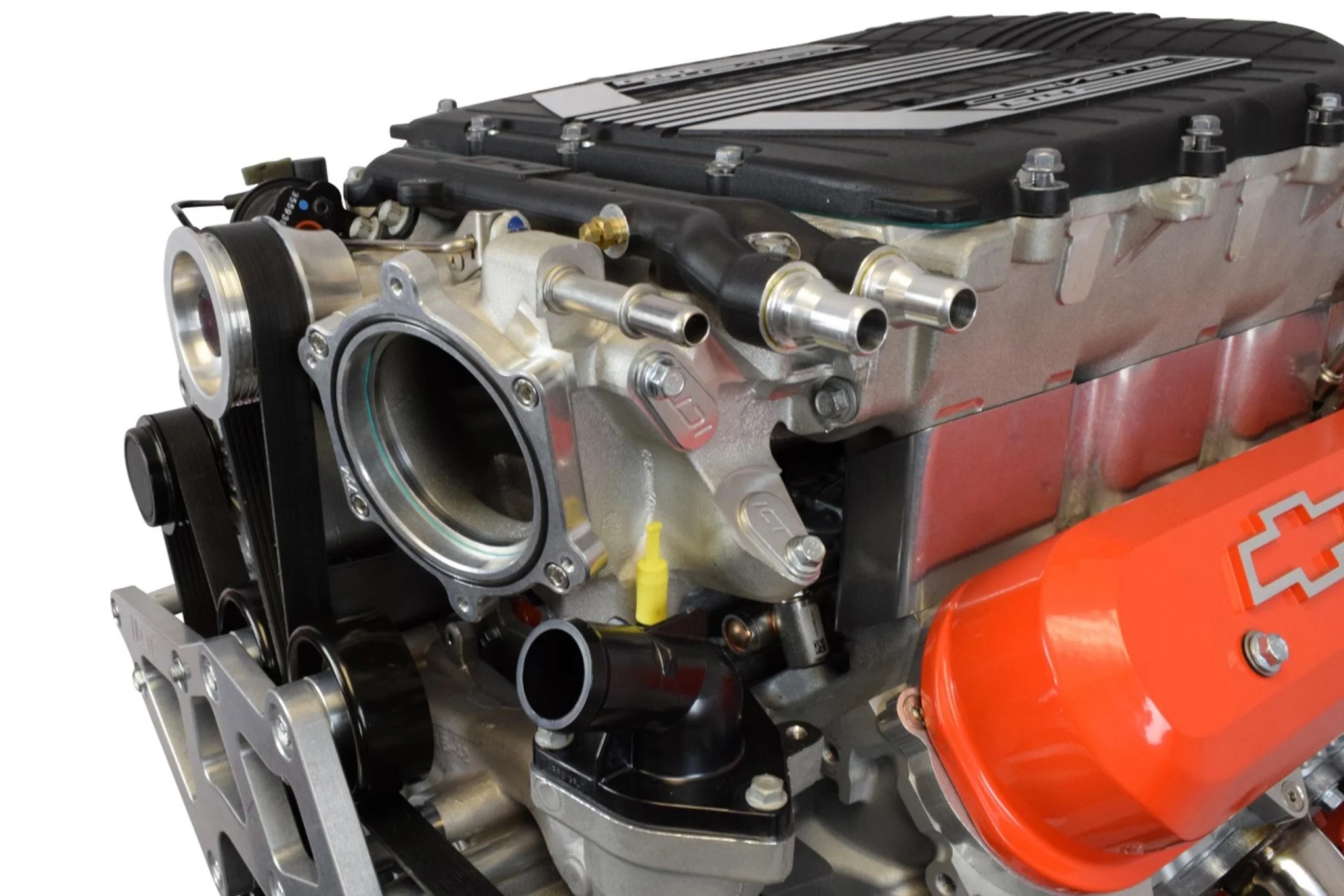

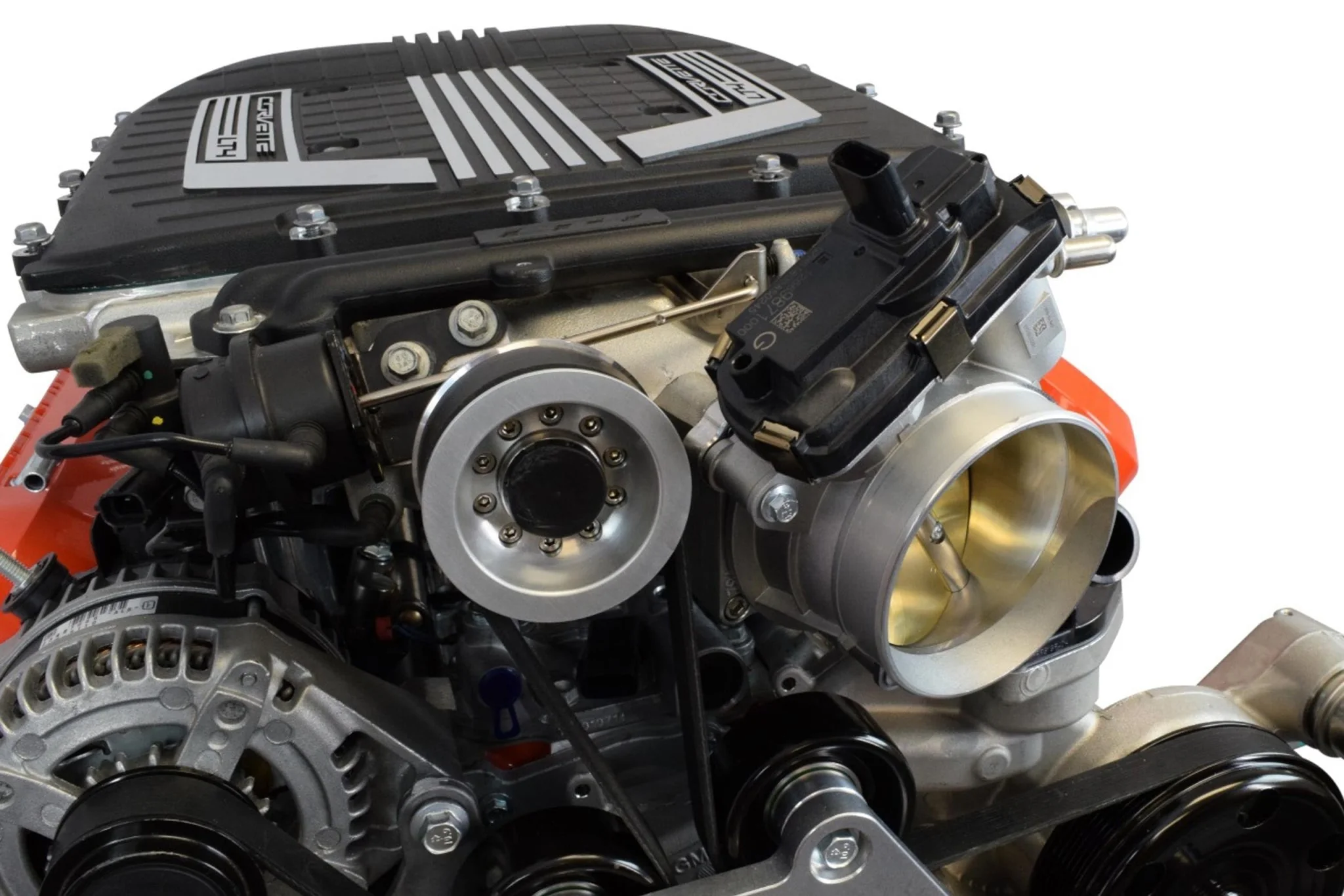

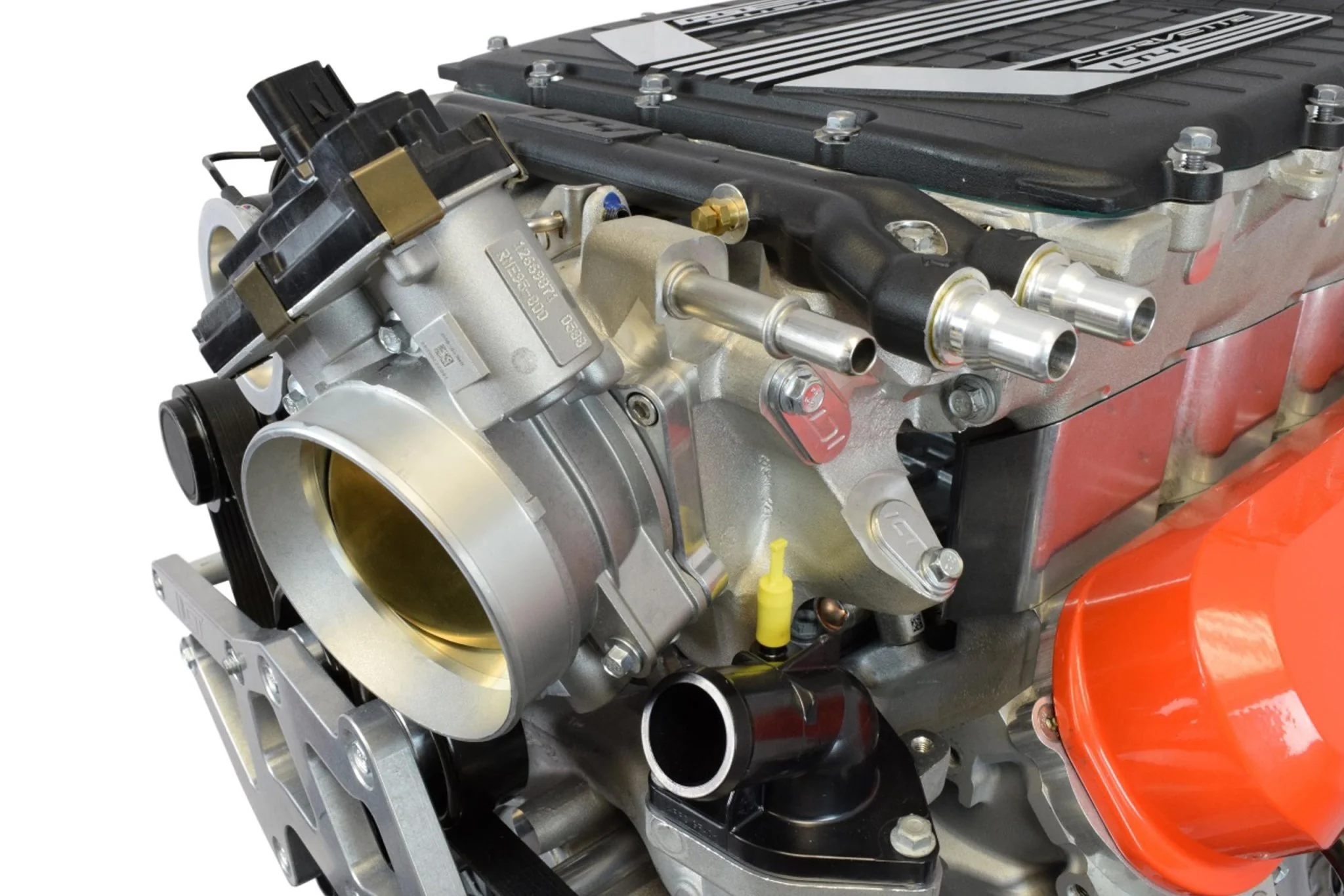

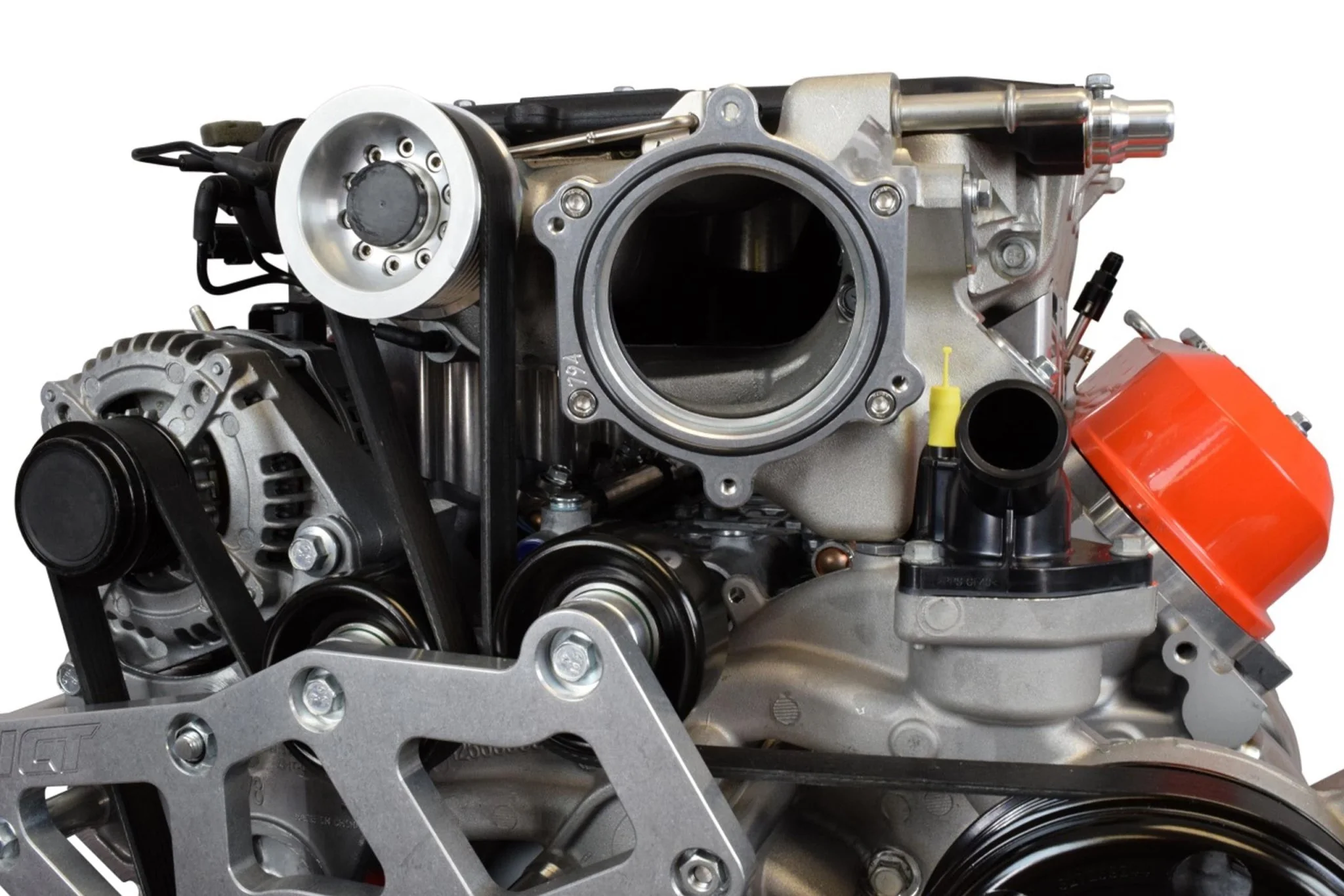

- This part is required when using the LT5 throttle body with the LT4 supercharger on LT truck V8 engines
- 93mm through hole (not tapered)
- Compatible with 95mm LT5 throttle body ONLY
-
Compatible with 92-103mm intake manifold (or supercharger): LS 4-bolt (except LS4) and Gen V: LT1, LT2, LT4, L86, L87, L8B, L8P, L8T
- Plate has M6-1.0mm threaded holes
- Made in Wichita, Kansas, from 1/2" thick 6061-T6 USA produced billet aluminum

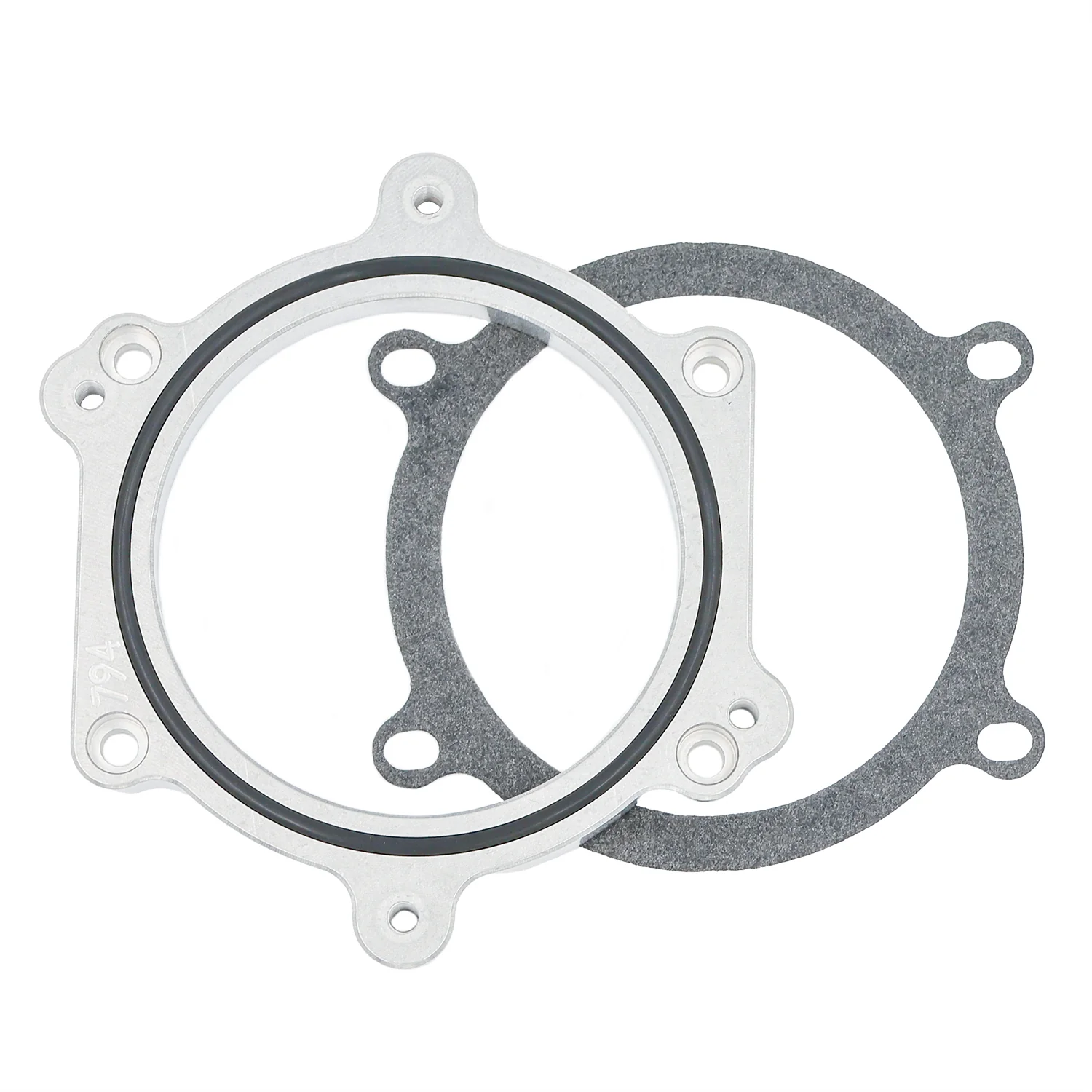

- Includes: adapter, oring, gasket, and mounting bolts (includes a gasket to use in between adapter plate and intake if intake is ported and cannot use a factory o-ring)
Helpful Links
- Torque bolts to 106 lb-in
- Replacement -242 oring
$25.55
Original: $72.99
-65%LS/LT1/ LT4 Intake to LT5 Throttle Body Rotation Adapter—
$72.99
$25.55Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
LT5 Throttle Body to LT1 Intake (or LT4 Supercharger) Rotation Adapter
Product Details:
- This part is required when using the LT5 throttle body with the LT4 supercharger on LT truck V8 engines
- 93mm through hole (not tapered)
- Compatible with 95mm LT5 throttle body ONLY
-
Compatible with 92-103mm intake manifold (or supercharger): LS 4-bolt (except LS4) and Gen V: LT1, LT2, LT4, L86, L87, L8B, L8P, L8T
- Plate has M6-1.0mm threaded holes
- Made in Wichita, Kansas, from 1/2" thick 6061-T6 USA produced billet aluminum
- Includes: adapter, oring, gasket, and mounting bolts (includes a gasket to use in between adapter plate and intake if intake is ported and cannot use a factory o-ring)
Helpful Links
- Torque bolts to 106 lb-in
- Replacement -242 oring
