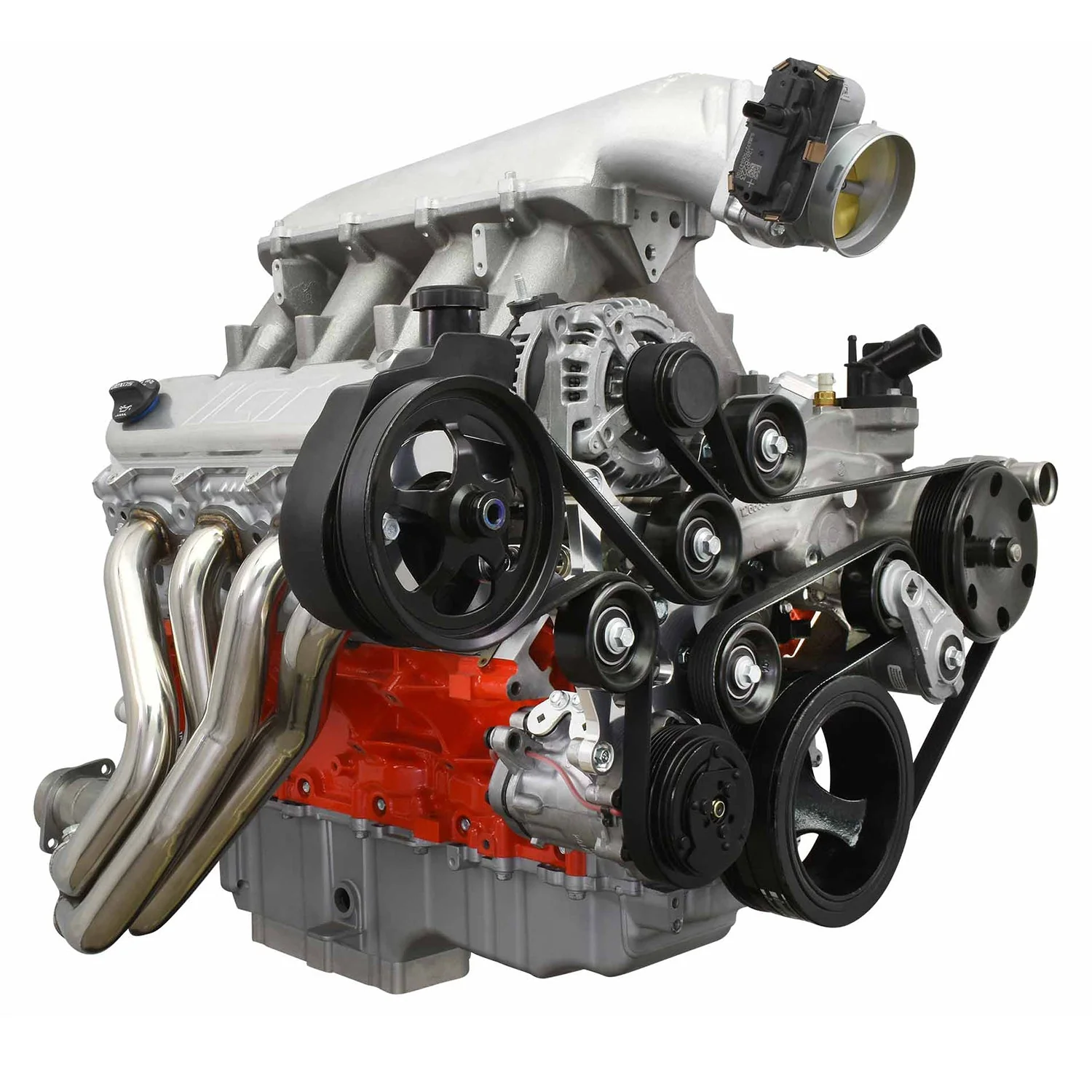

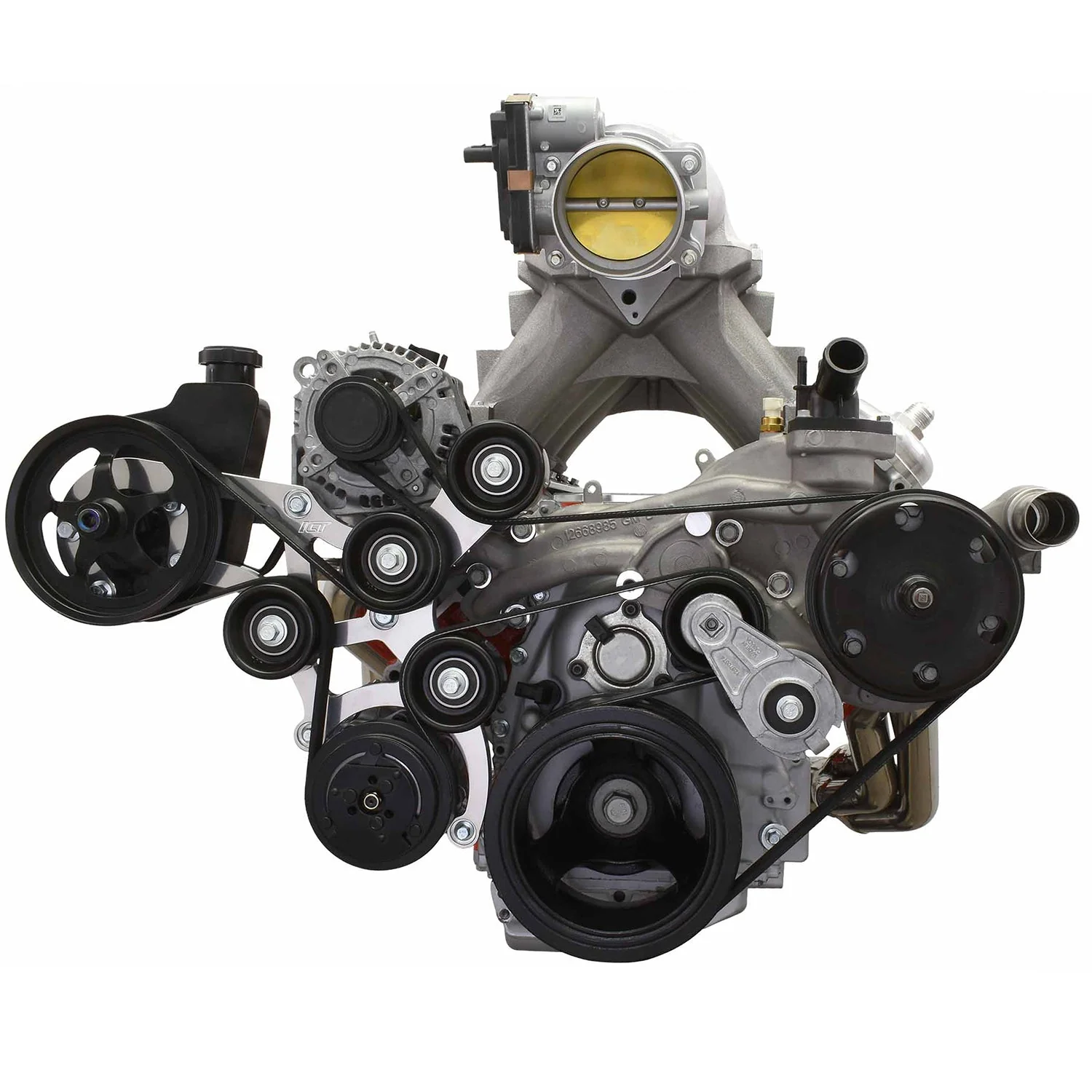

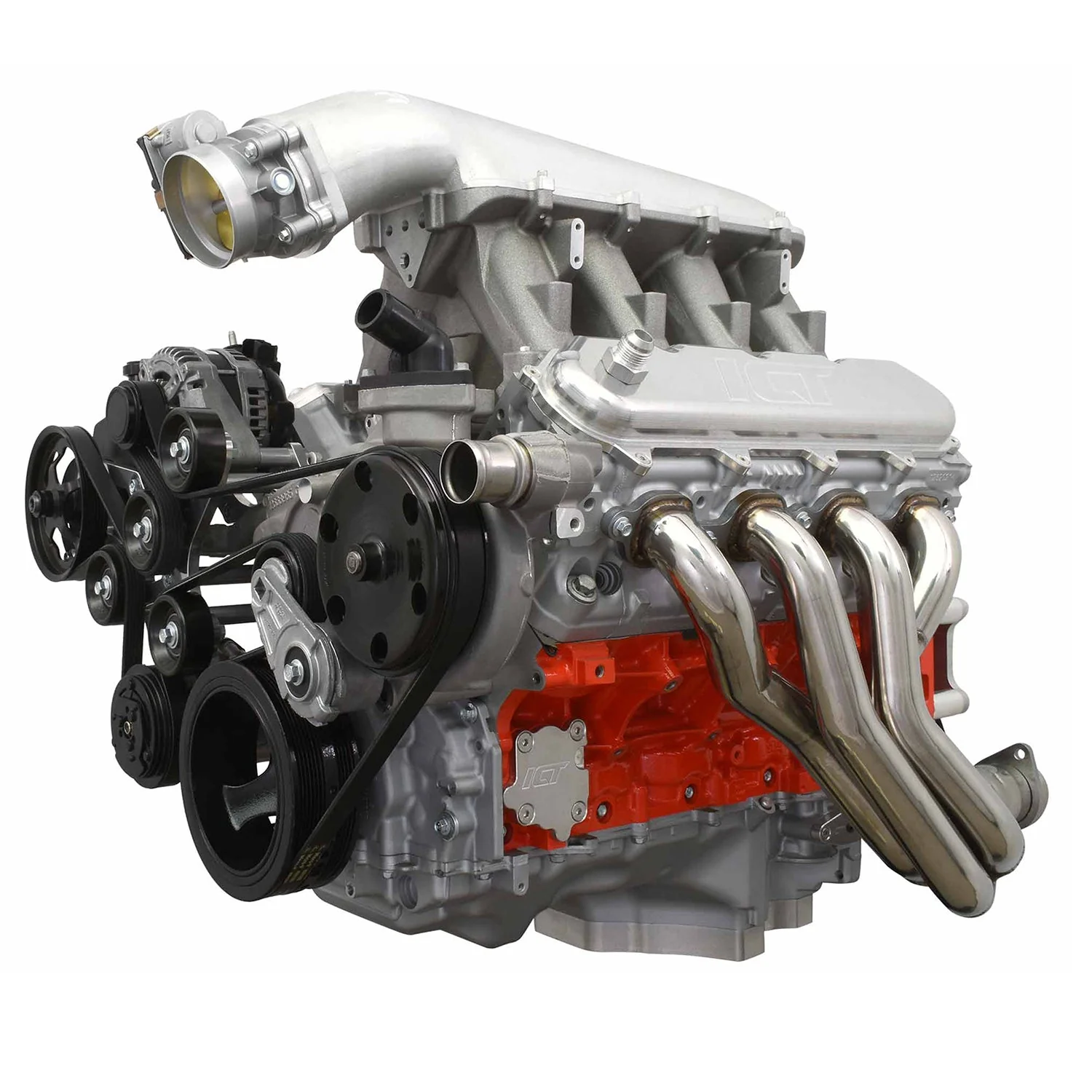

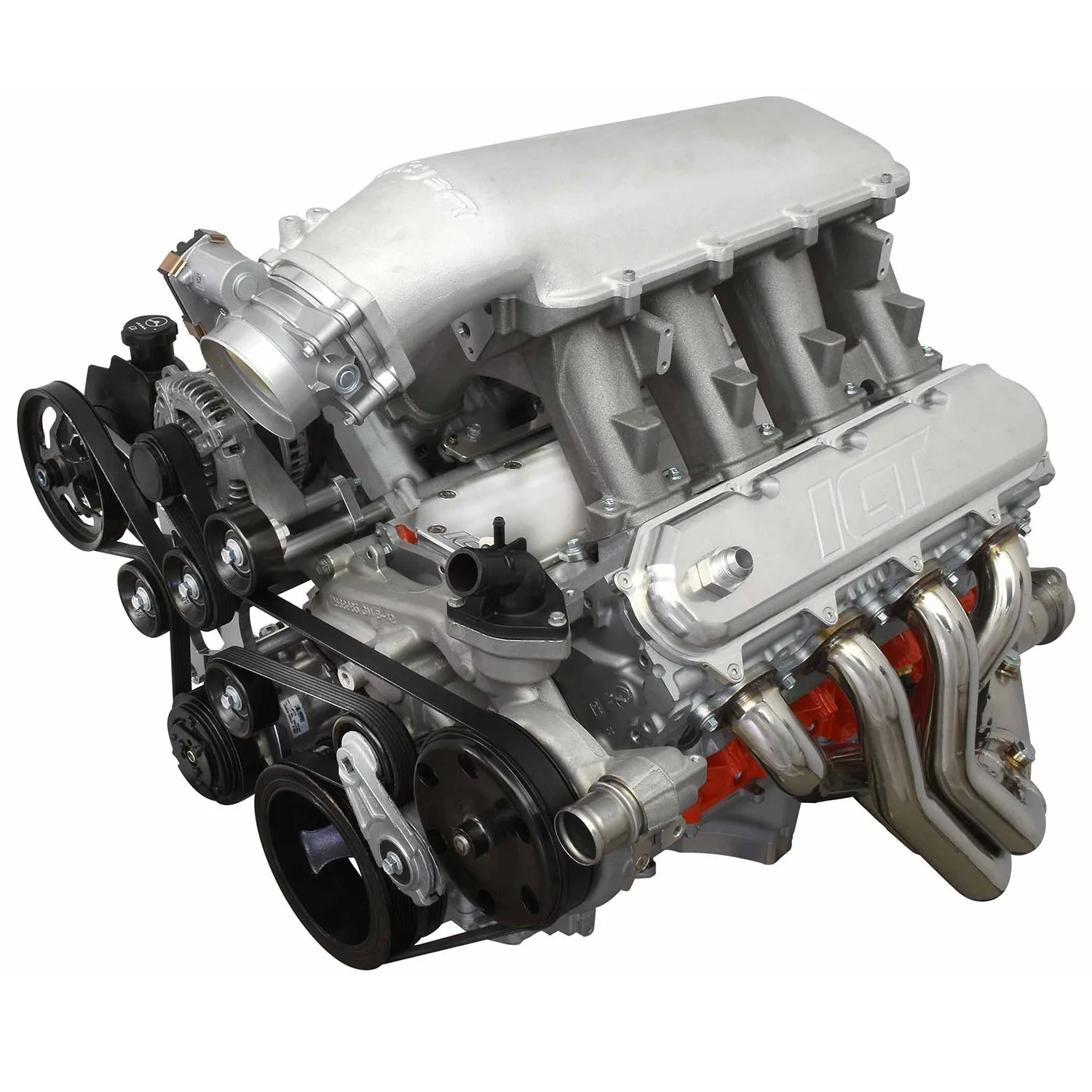

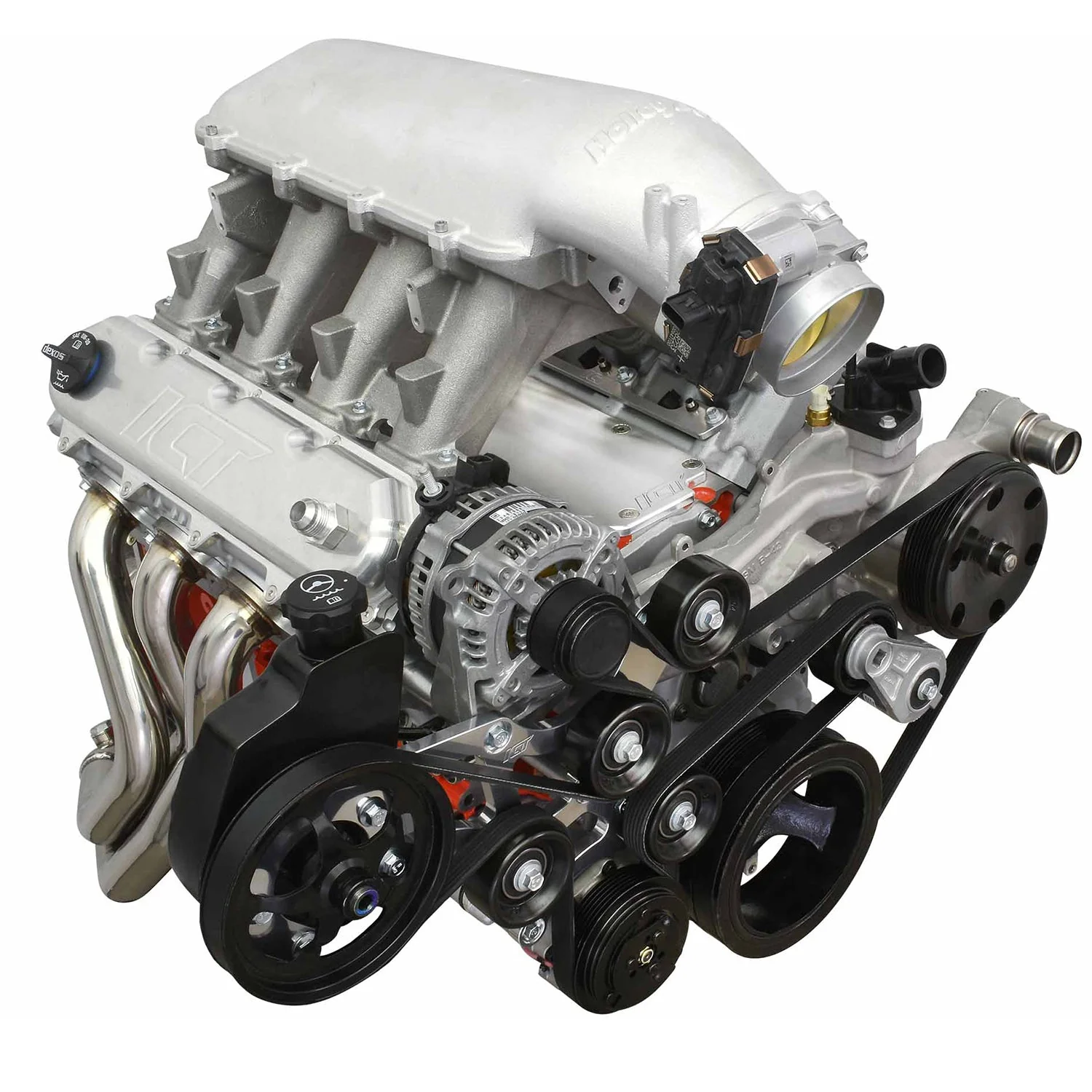

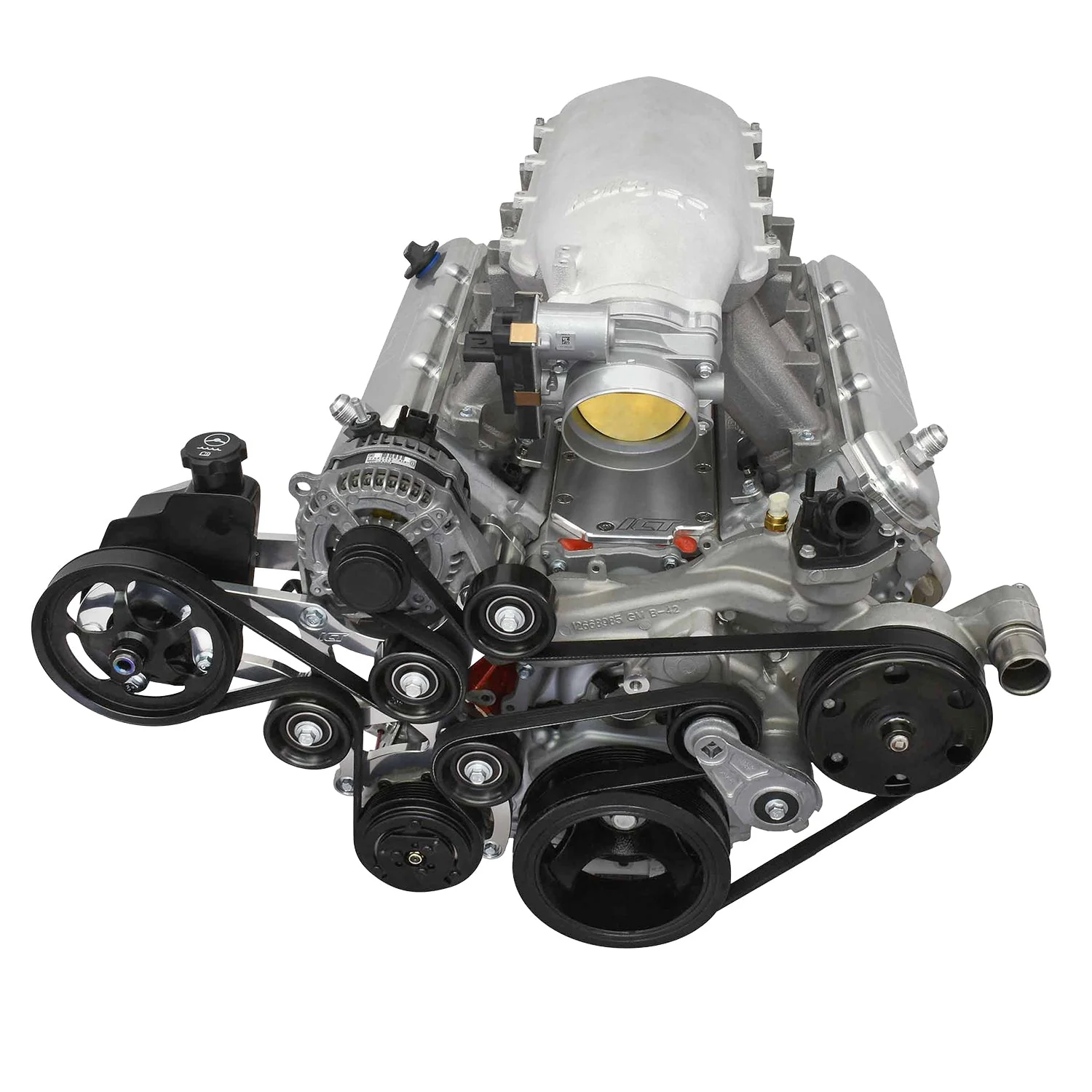

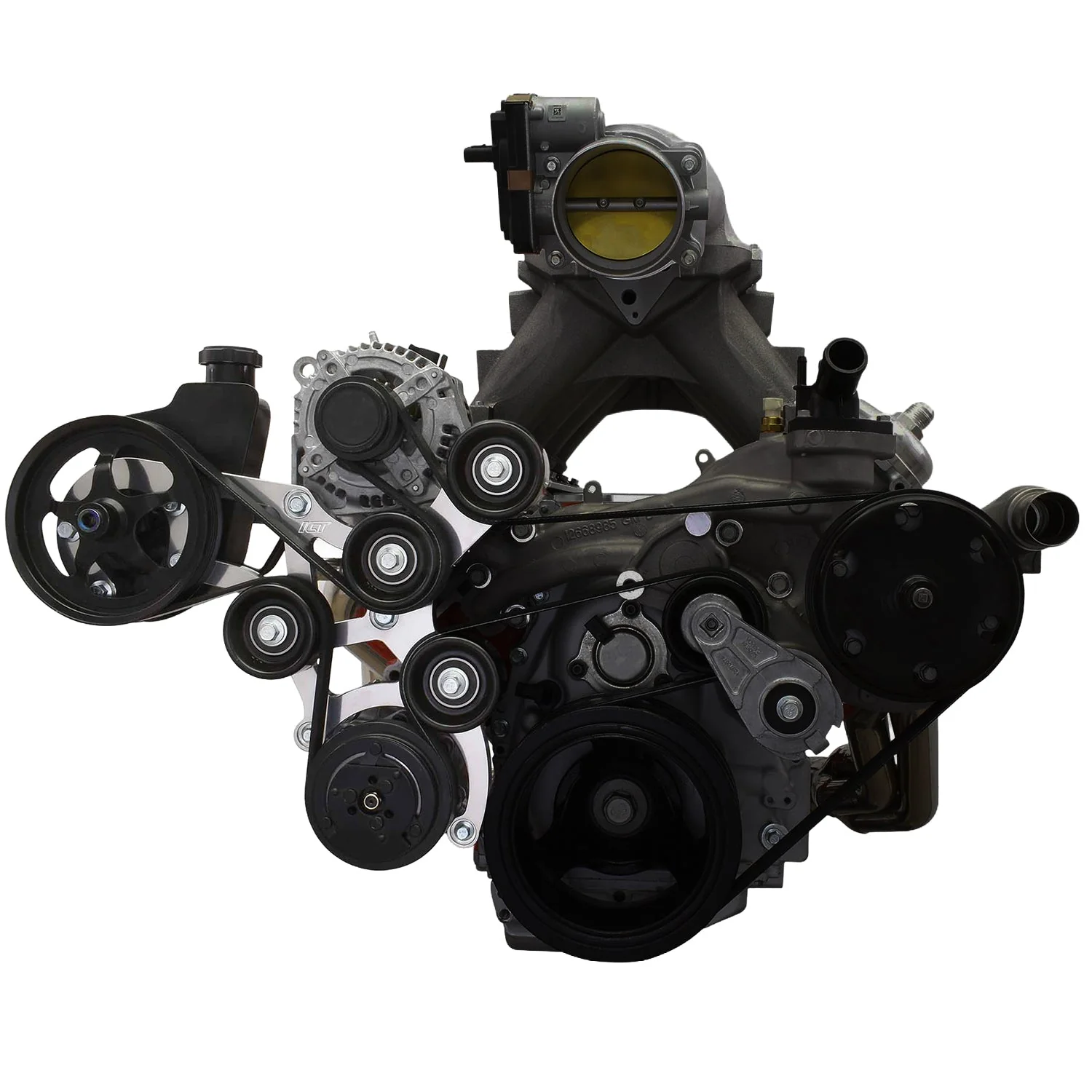

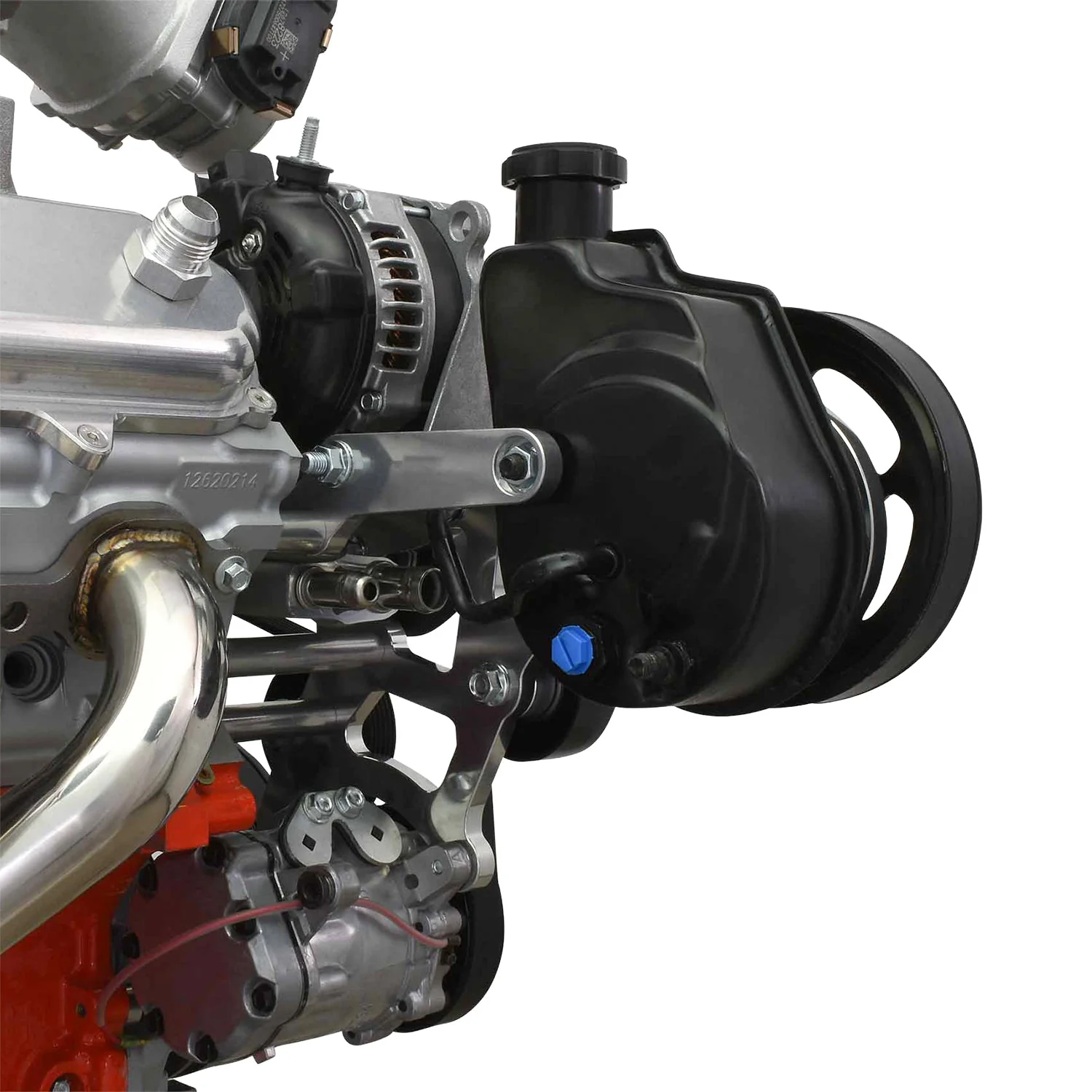

LT Power Steering & 7176 A/C Bracket Kit

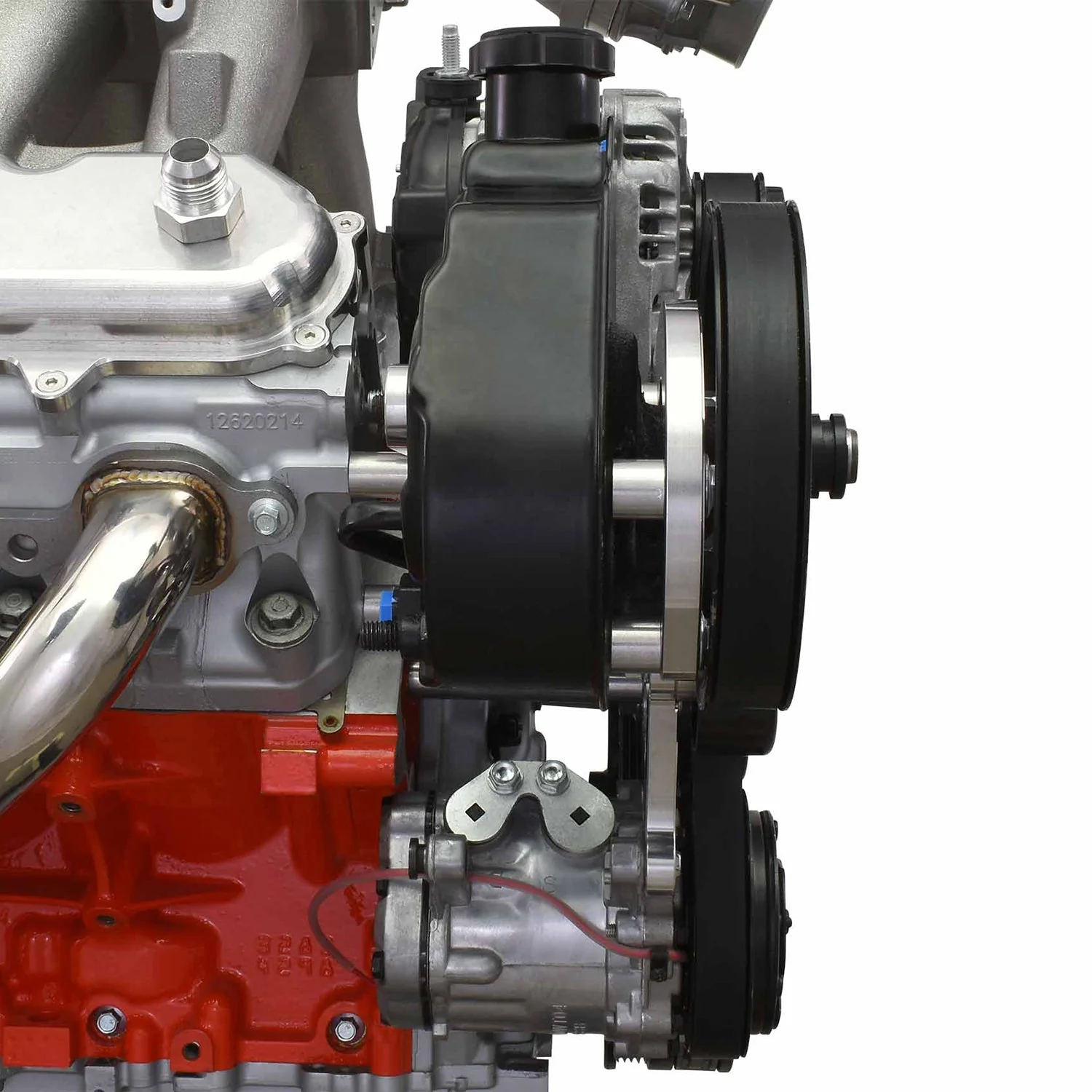

LT - Gen V Swap - Power Steering and 7176 A/C Compressor Bracket Kit

Product Details:

• Compatible with Saginaw (factory LS truck pump ONLY) power steering pump (NOT SBC pump due to reservoir clocking and bolt thread pitch)
• Compatible with LT and LS truck alternators (5.46" bolt pattern)
• Compatible with: LT Truck harmonic balancer and L83/L86 water pump
• Compatible with Gen 5 LT, V8 engines (V6 needs different hardware)
• Includes: bracket, idler pulleys, instructions, and mounting hardware
• Belt length with factory tensioner: Gates K061247 (124.7 Inch)
• Made in Wichita Kansas from 6061-T6, USA produced billet aluminum.  Includes USA made metric flange bolts and idler pulleys


Compatible with (based on vehicle 3D scans by ICT)

• Chevrolet Square Body Trucks C10, K10 1983-1987
• Chevrolet OBS Silverado C1500-3500, K1500-3500 1988-1998

Helpful Links & Guides

• Belt length chart
• Replacement smooth pulley
• Billet smooth pulley

• Replacement bolt and spacer kit
• Optional alternator wire harness extension: 4 pin connector or 2 pin
• Instructions
