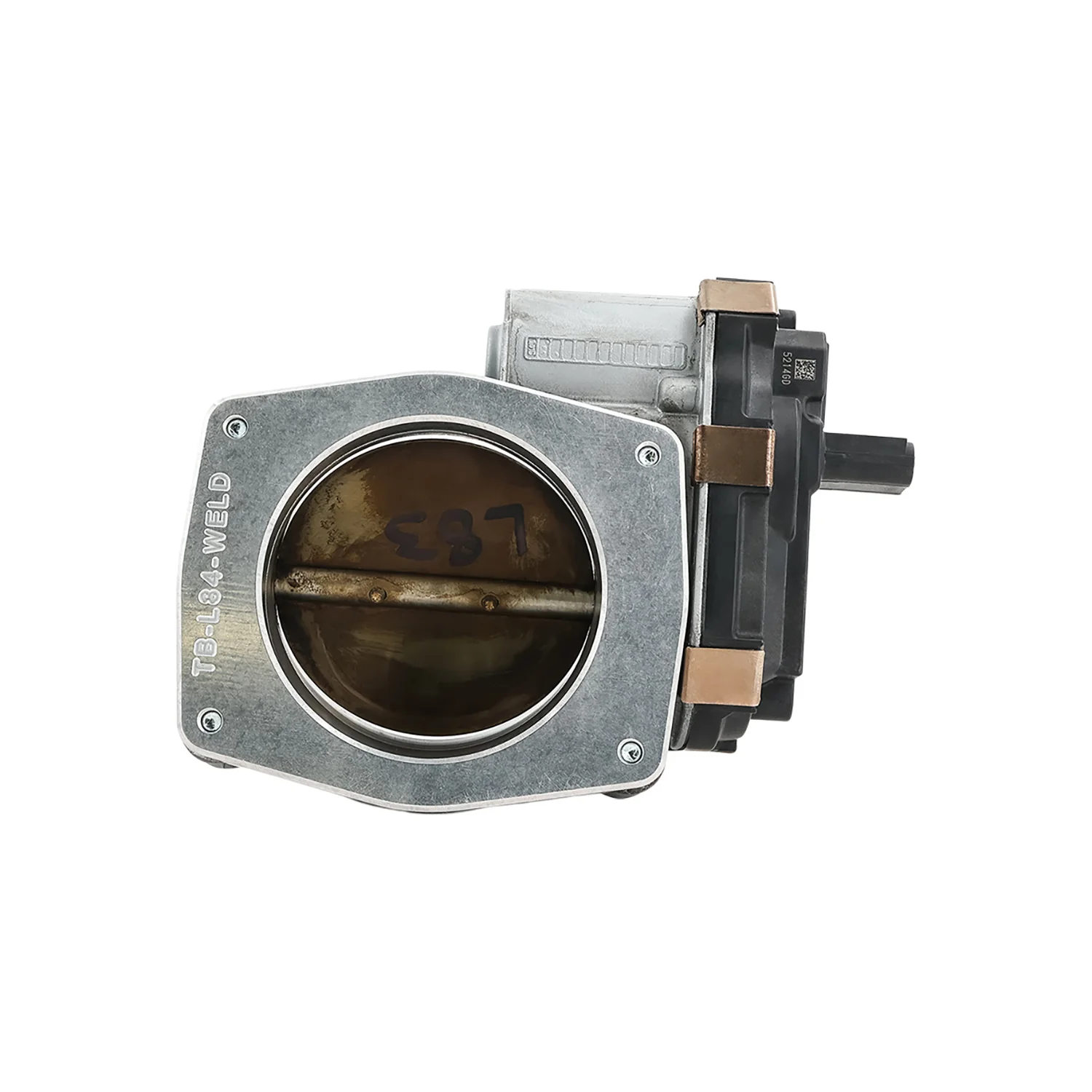

L84 Throttle Body Weld Flange

Throttle Body Weld Flange for Custom Intake Manifolds

This can be used to build a tight 90° bend from your intake manifold or supercharger, to move your throttle body to a more convenient location.

• Compatible with L82, L83, L84, L8B, throttle bodies

• 80mm through hole
• Plate is flat on one side and has oring groove on the opposite side
• Plate has 4x M6-1.0mm threaded holes
• Made in Wichita, Kansas, from 1/2" thick 6061-T6 USA produced billet aluminum

• Includes 1 weld flange, 1 oring, and 4x M6-1.0-40mm bolts


Helpful Links

• Torque bolts to 106 lb-in
• Replacement -235 oring
