LS A/C Bracket Sanden 7176 - Truck Spacing (Low Mount)

LS - 6-Rib - Sanden 7176 Air Conditioner Compressor Bracket Kit - Truck Spacing

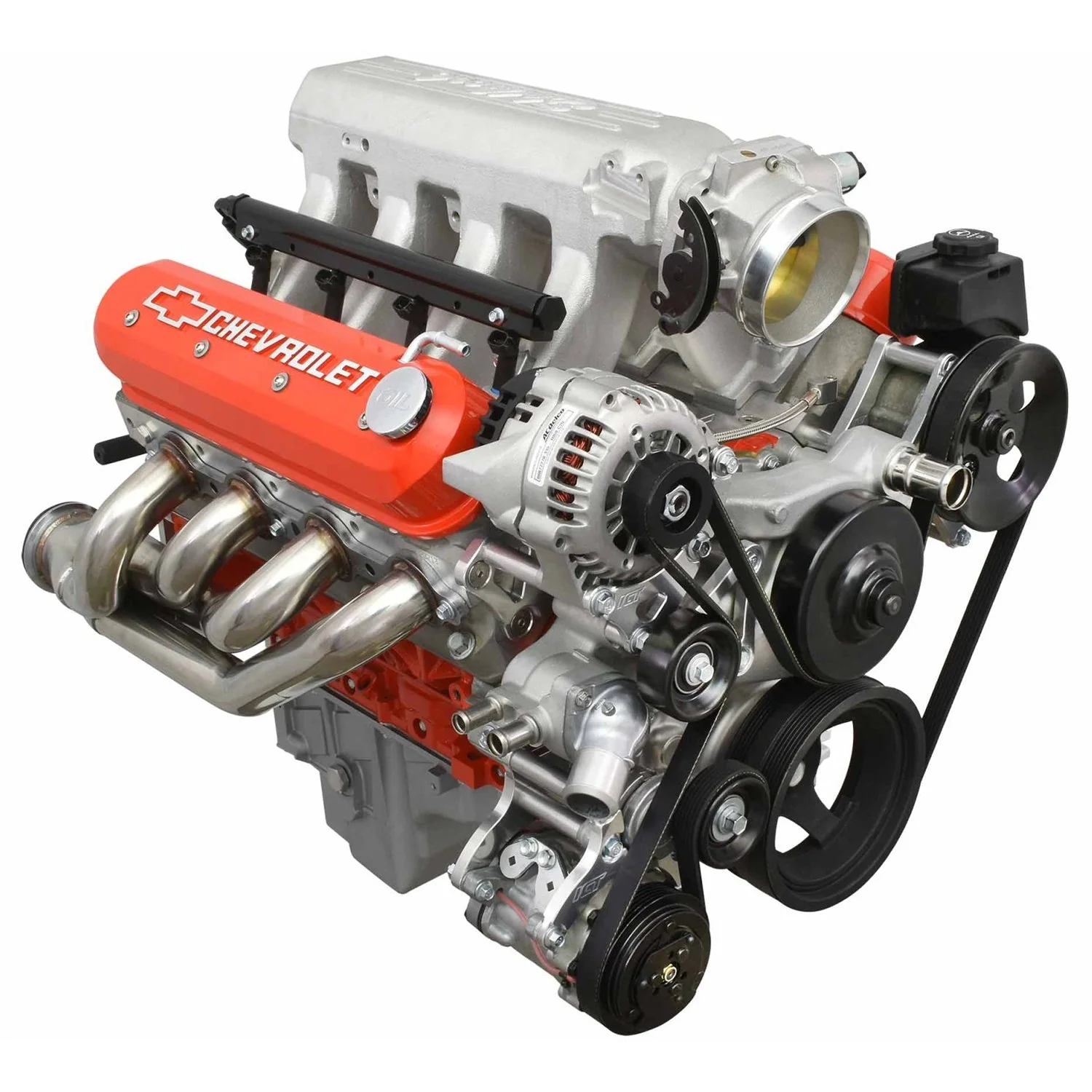

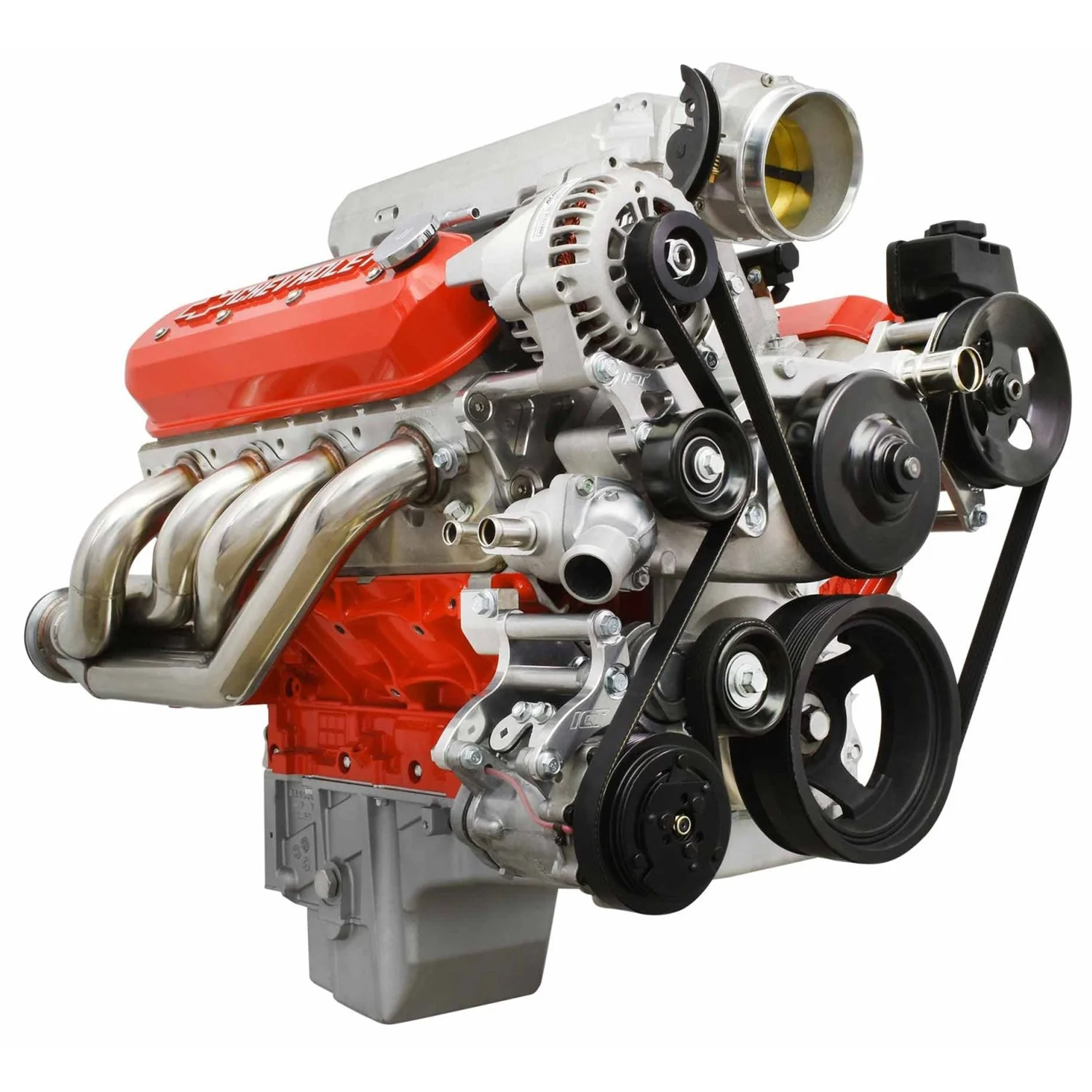

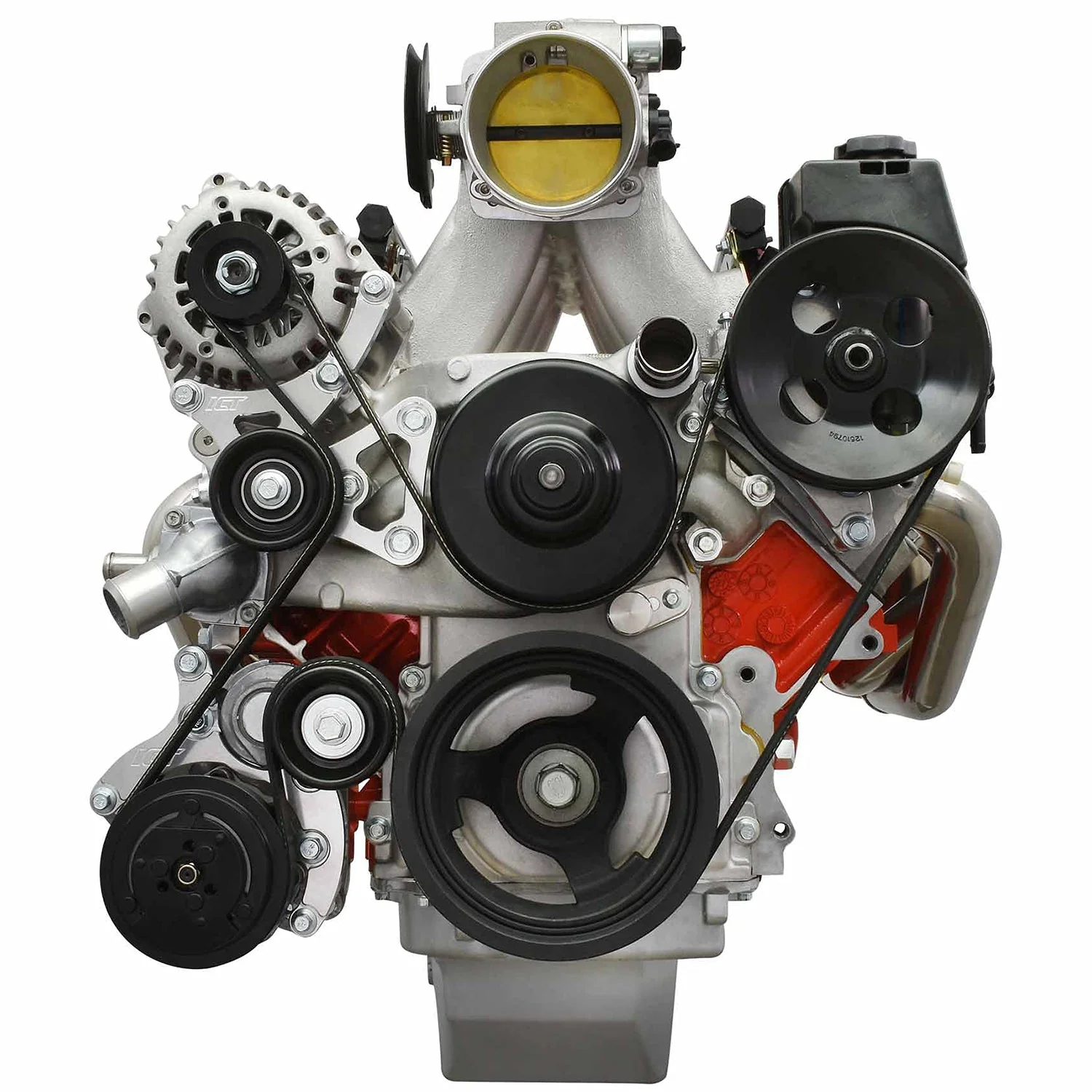

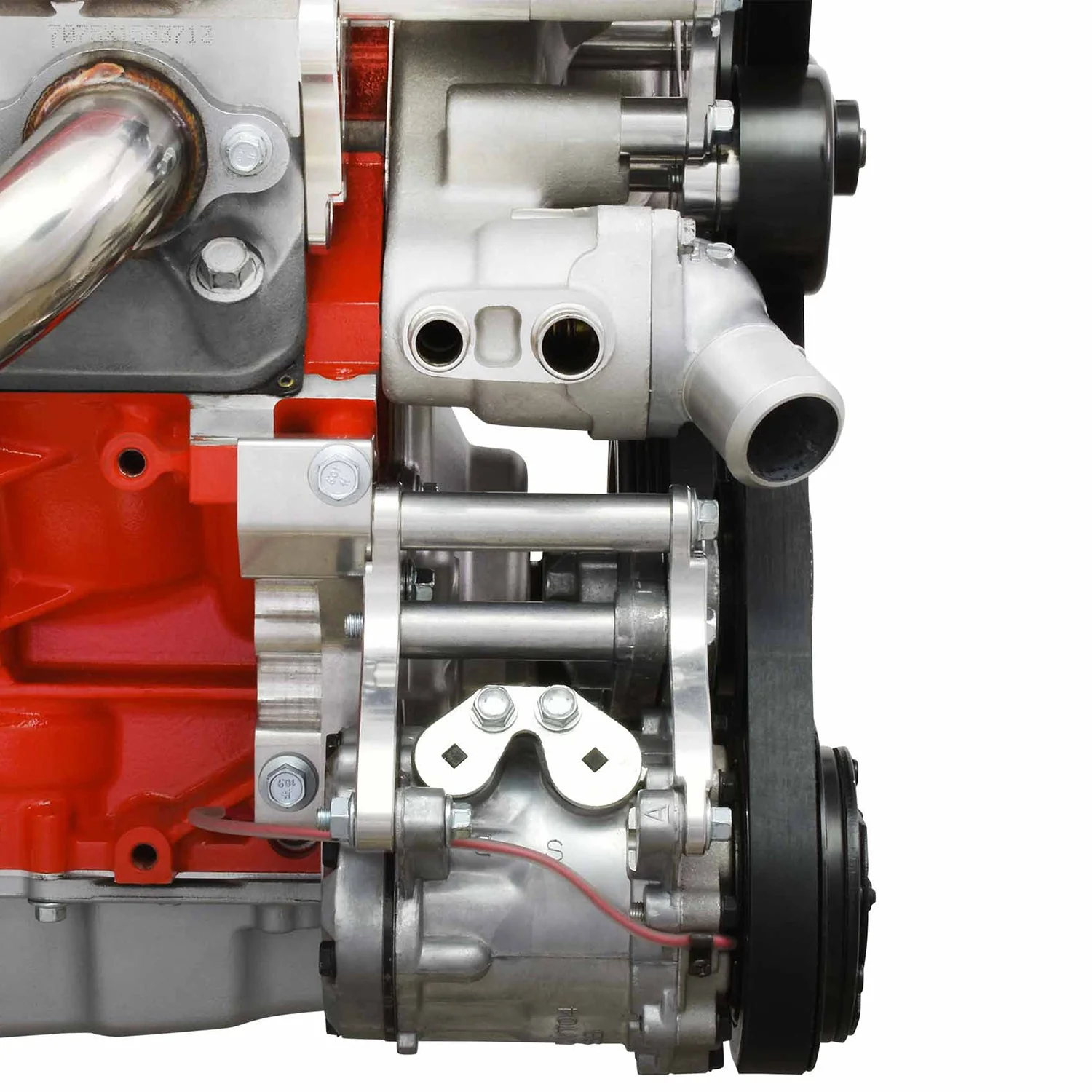

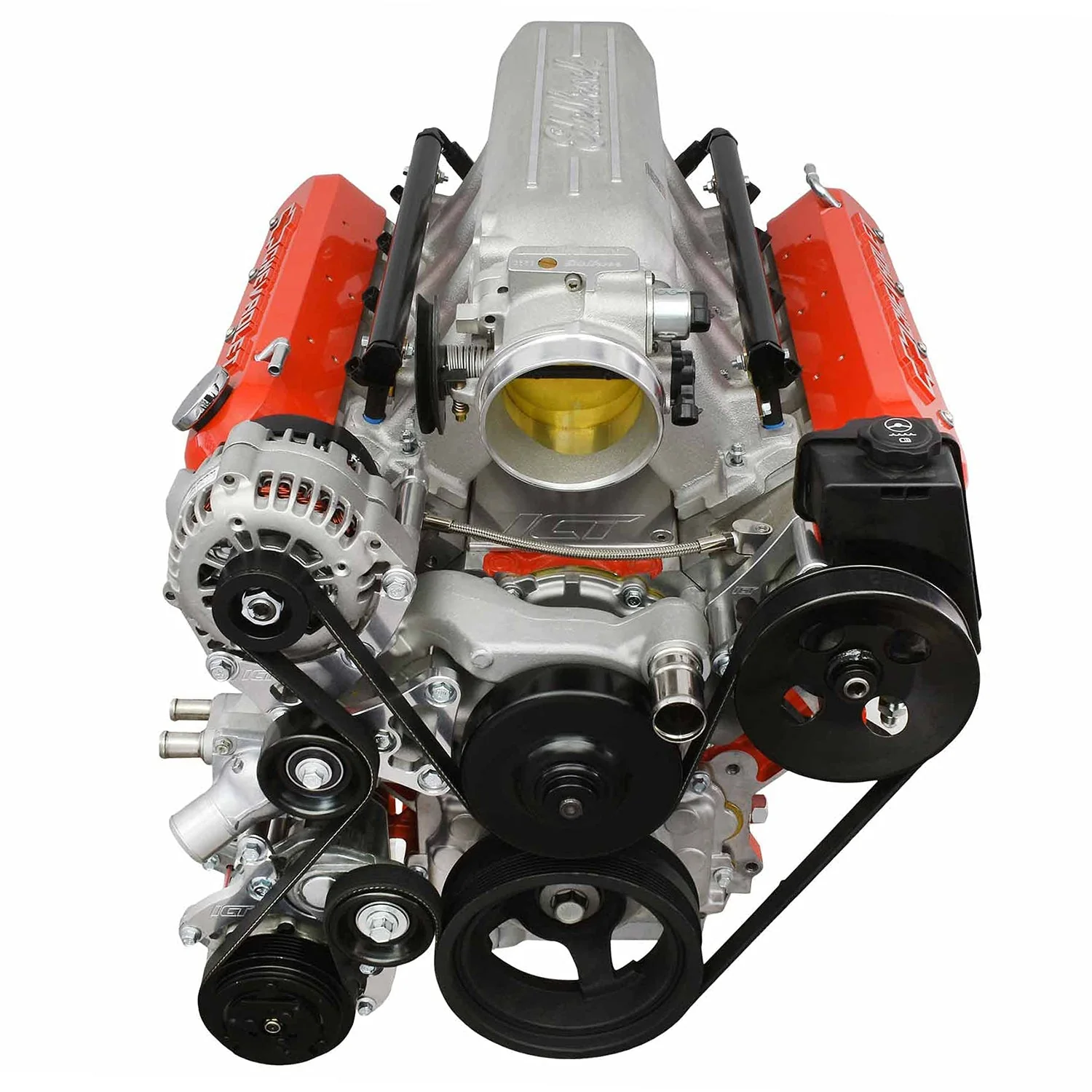

Mounts the aftermarket style "Sanden 7176" (SD7) compressor down low on the passenger side in the factory LS compressor location

• Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancer
• Compatible with Sanden 7176 SD7 AC compressors (NOT compatible with factory LS compressors)

• Aligns compressor with the main, 6-rib belt on the crankshaft pulley
• Primarily used when mounting an alternator in front of passenger cylinder head with non-integrated belt tensioner.
• Compatible with factory small block Chevy motor mount location using ICT Billet LS adjustable swap plates or solid steel mounts

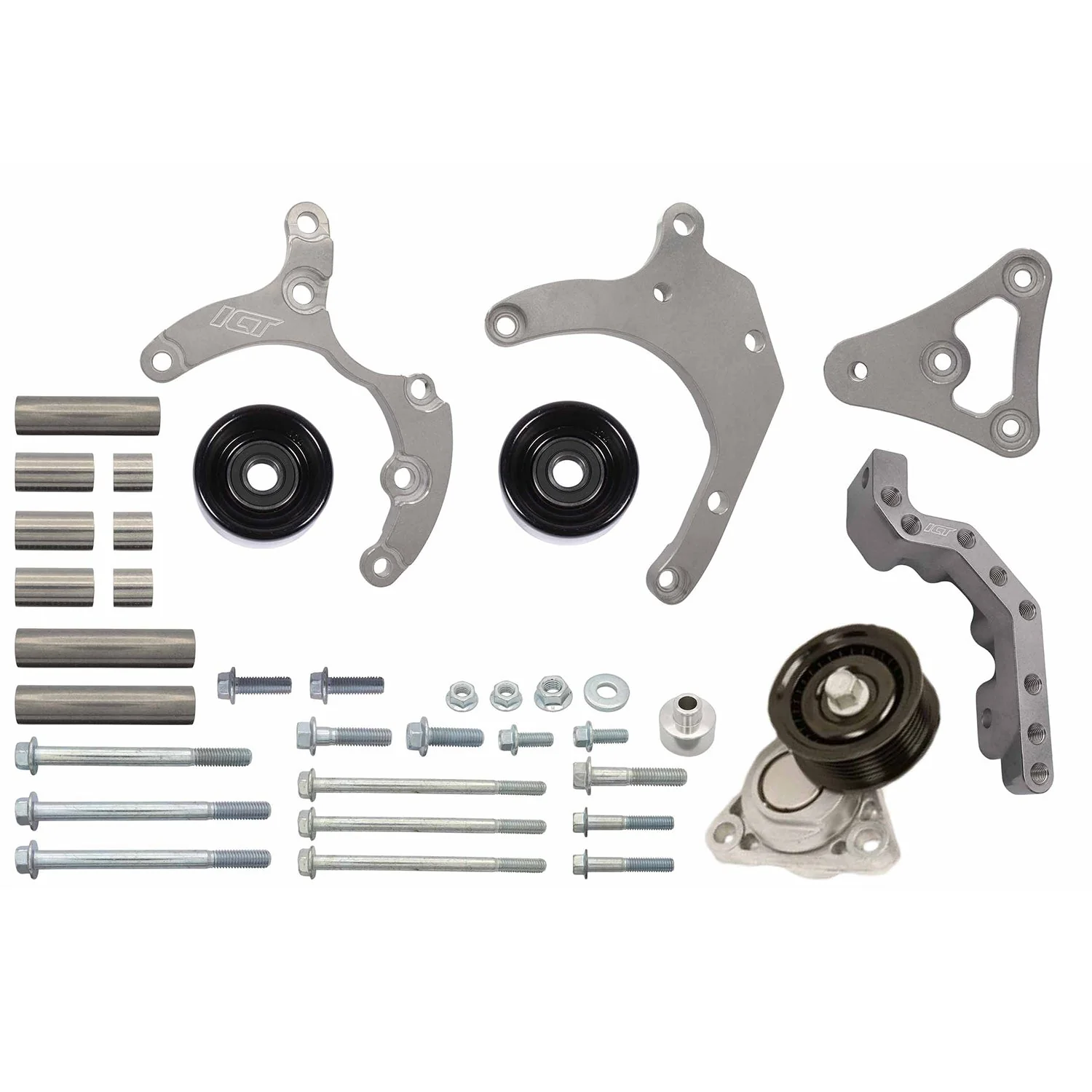

• Includes: Brackets, idler pulleys, hardware, and belt tensioner
• Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum

Helpful Links & Guides

• Belt length chart
• Replacement smooth pulley
• Billet smooth pulley
• Replacement tensioner
• Replacement bolt and spacer kit
• Instructions
