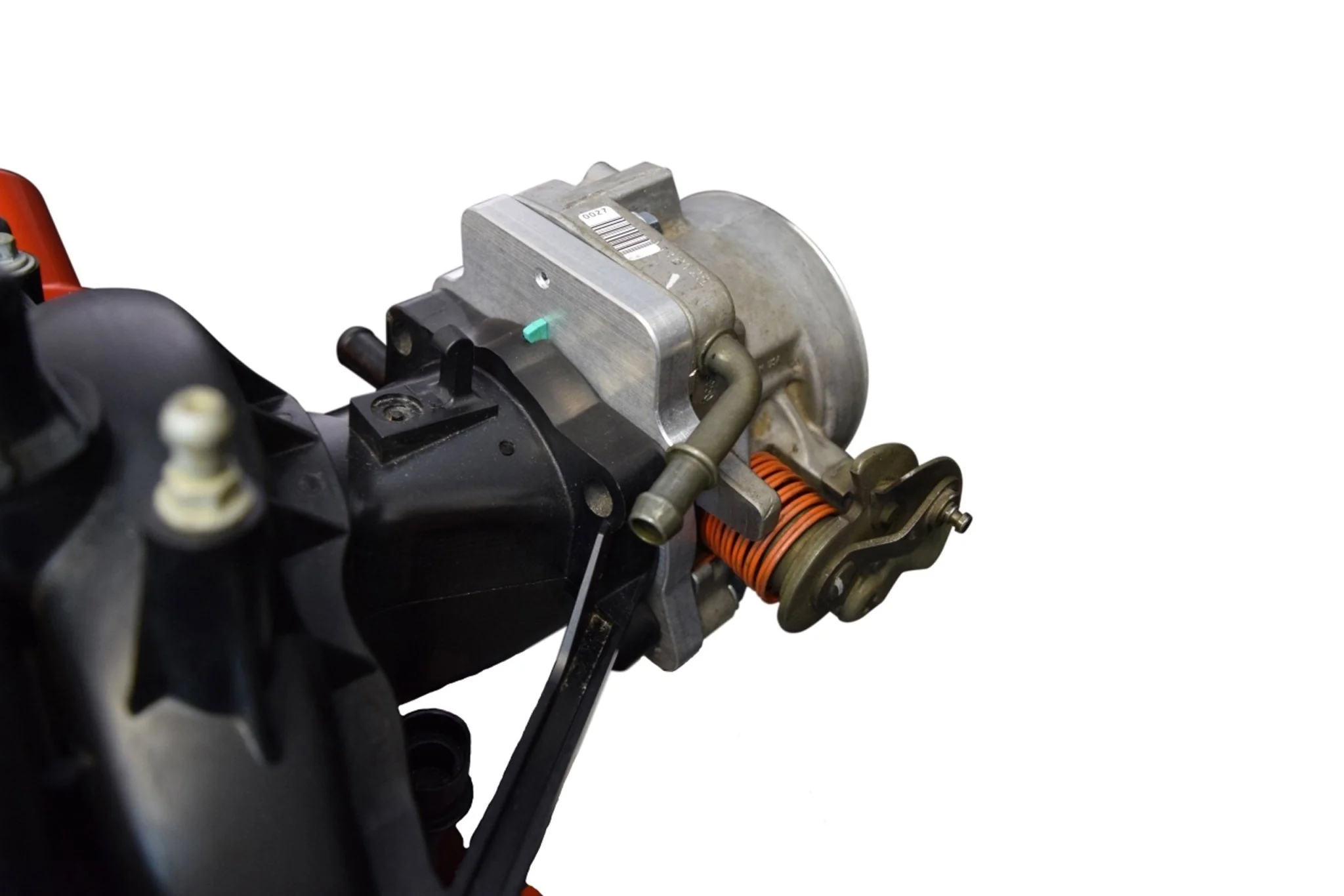

LS4 Intake to LS 3-Bolt DBC Throttle Body Adapter

LS4 Intake Manifold to 3-Bolt DBC Throttle Body Adapter

Product Details:

*NOT compatible with electronic throttle bodies

• 75mm through-hole (not tapered)
• Compatible with 75mm LS 3-bolt throttle bodies with mechanical throttle cable (DBC)(1998-02 (L59, LM4, LM7, LQ4, LR4, LS1 Camaro)

• Compatible with 75-103mm LS4 ONLY intake manifold
• Made in Wichita, Kansas, from 1/2" thick 6061-T6 USA produced billet aluminum
• Includes: adapter, gasket, and mounting bolts

• LS4 engines are only found in 2005-08 Pontiac GXP, 2006-07 Monte Carlo SS, 2006-09 Impala SS, and 2008-09 Buick Lacrosse Super

Helpful Links

• Torque bolts to 106 lb-in
• Replacement gasket
