LS A/C Bracket Sanden 7176 - LS1 Camaro Spacing (Low Mount)

LS - 4-Rib - Sanden 7176 A/C Air Conditioner Compressor Bracket Kit - LS1 Camaro Spacing

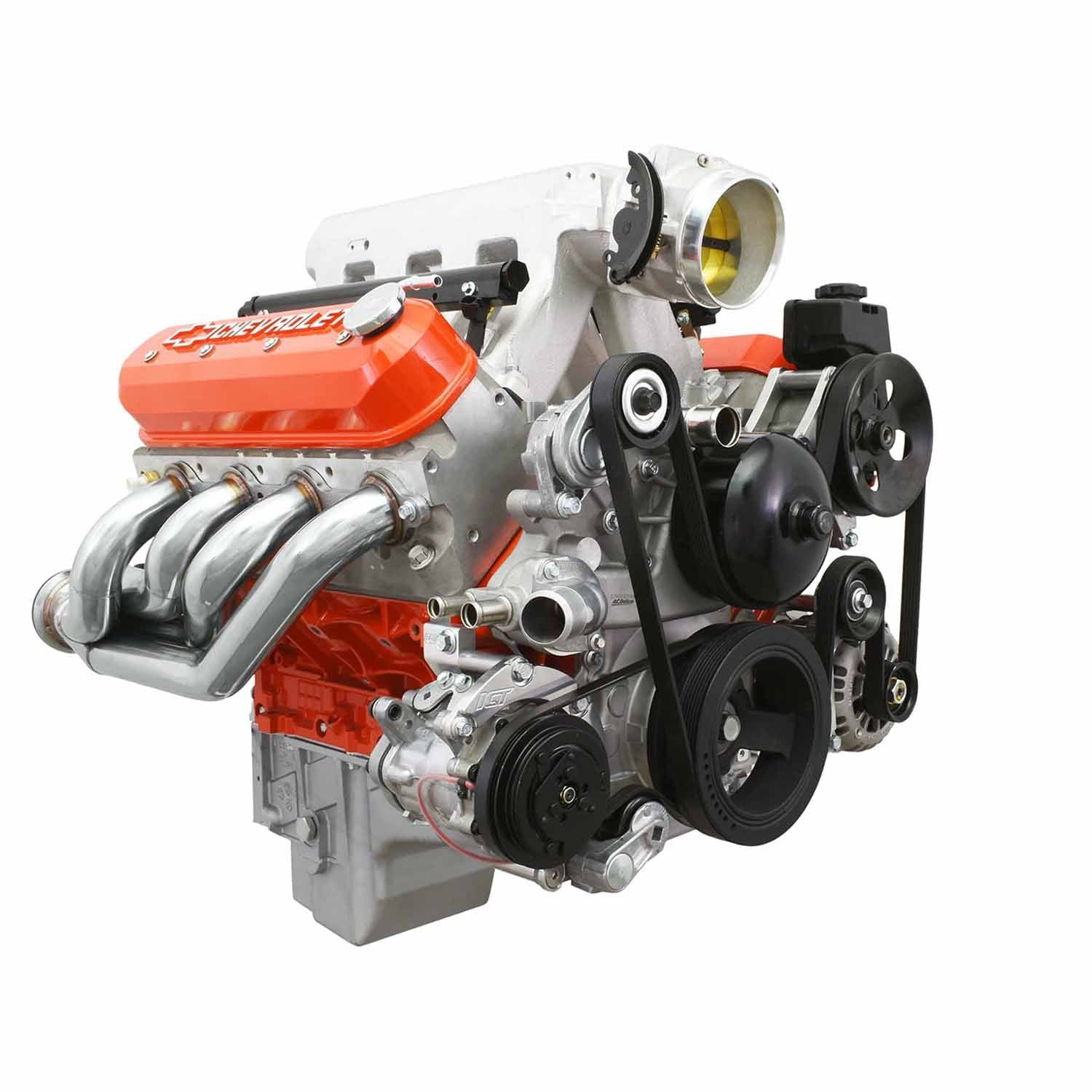

Mounts the aftermarket style "Sanden 7176" (SD7) compressor down low on the passenger side in the factory LS compressor location

• Aligns compressor with the rear, 4-rib belt location on the crankshaft pulley
• Compatible with 1998-2002 Camaro LS1 (2004-06 GTO) harmonic balancer

• Compatible with Sanden 7176 SD7 AC compressors (NOT compatible with factory LS compressors)

• Not compatible with "stock" (forward most) position motor mounts on the ICT adjustable swap plates or steel engine mounts

• Includes: bracket, mounting hardware, and belt tensioner
• Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum


Compatible with (based on vehicle 3D scans by ICT)

• Nissan 240SX, S14   95-98

*note if using UMI sway bay in a 1998-02 Camaro then you need to remove the tensioner and use a 2012 Silverado 5.3L stretch belt

Helpful Links & Guides

• Torque Specs: Flange bolts (M10 = 37 lb-ft, M8 = 18 lb-ft) FHSC bolts (M10 = 31 lb-ft)
• Belt length chart
• Replacement tensioner
• Replacement bolt and spacer kit
• Instructions
