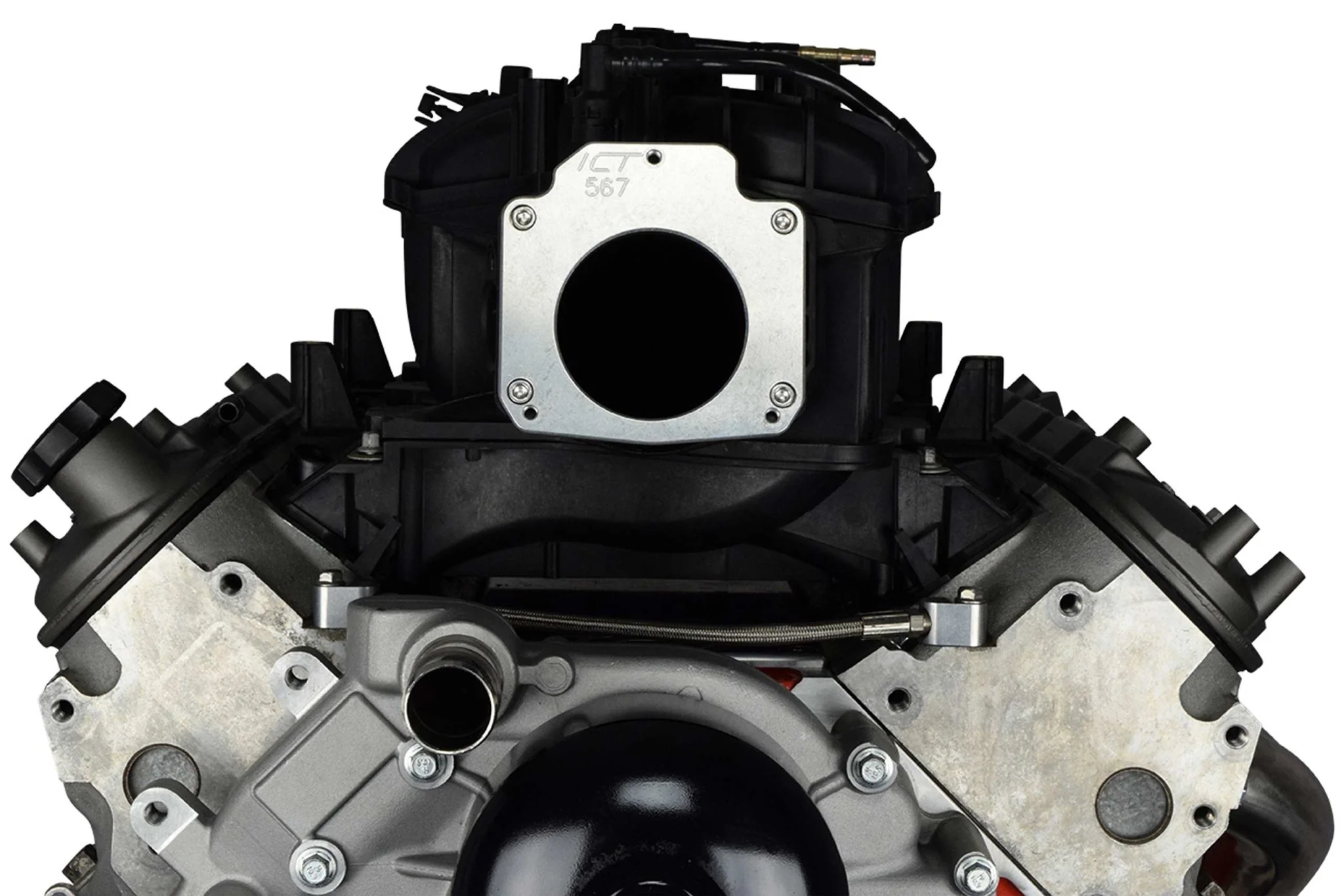

LS/LT1 4-Bolt Intake to LS DBW Throttle Body Adapter

LS 4 Bolt Intake to 3 Bolt Drive By Wire (electronic) Throttle Body

Product Details:

*NOT compatible with cable throttle bodies

• 75mm through hole (not tapered)
• Compatible with 75mm electronic throttle bodies LS 3-bolt (2003+ (L33, L59, LM4, LM7, LQ4, LQ9, LR4) (LS1, LS6 Corvette 1997-04))

• Compatible with 75-103mm intake manifold from LS 4-bolt (except LS4) and Gen V: LT1, LT2, LT4, L86, L87, L8B, L8P, L8T
• Plate has 3x M6-1.0mm threaded holes
• Made in Wichita, Kansas, from 3/8" thick 6061-T6 USA produced billet aluminum
• Includes: adapter, gasket, and mounting bolts

Helpful Links

• Torque bolts to 106 lb-in
• Replacement gasket
