LS A/C Bracket Sanden 7176 - Truck Spacing (Tight Fit)

LS "Tight Fit" Sanden 7176 Air Conditioning Compressor Bracket w/ Tensioner

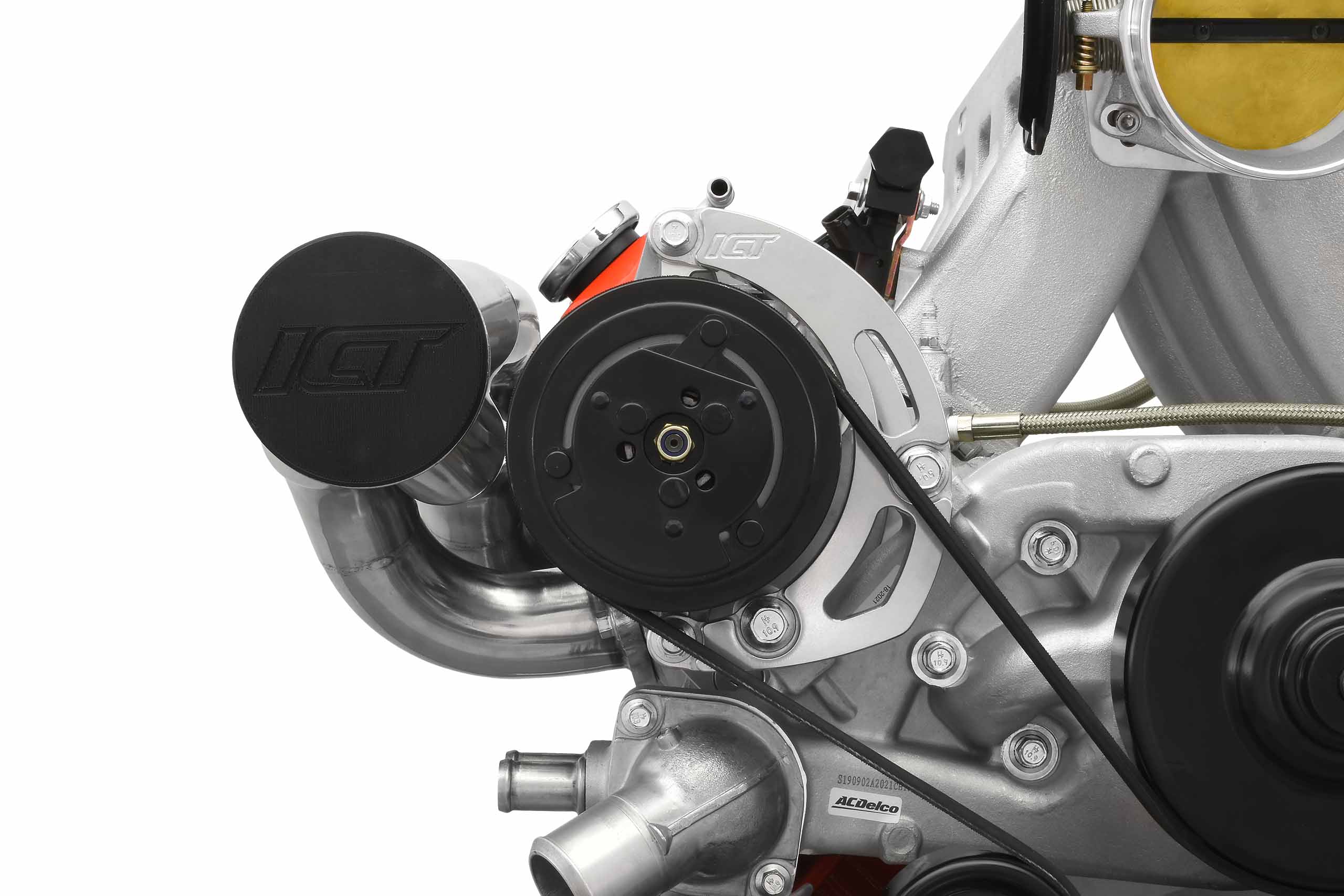

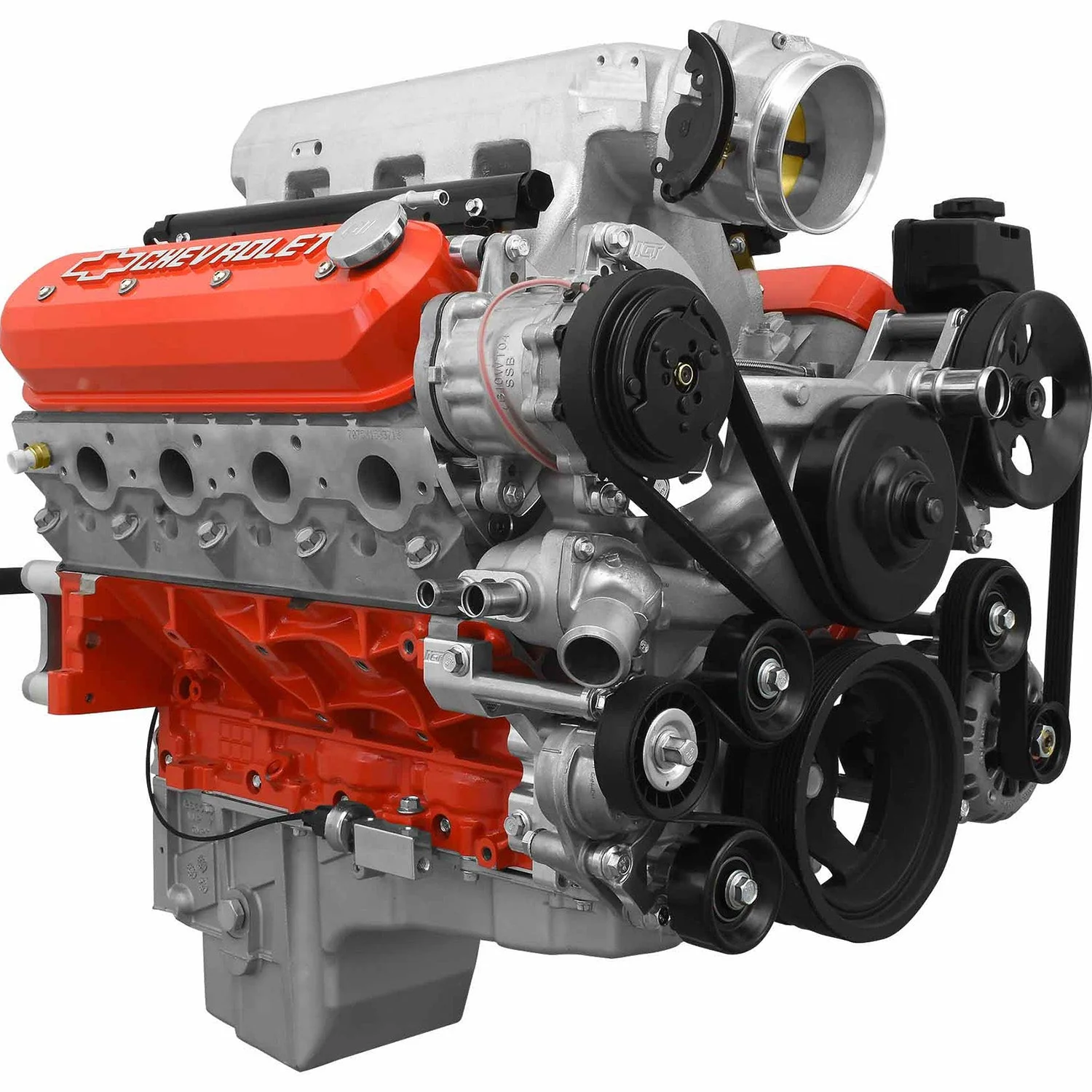

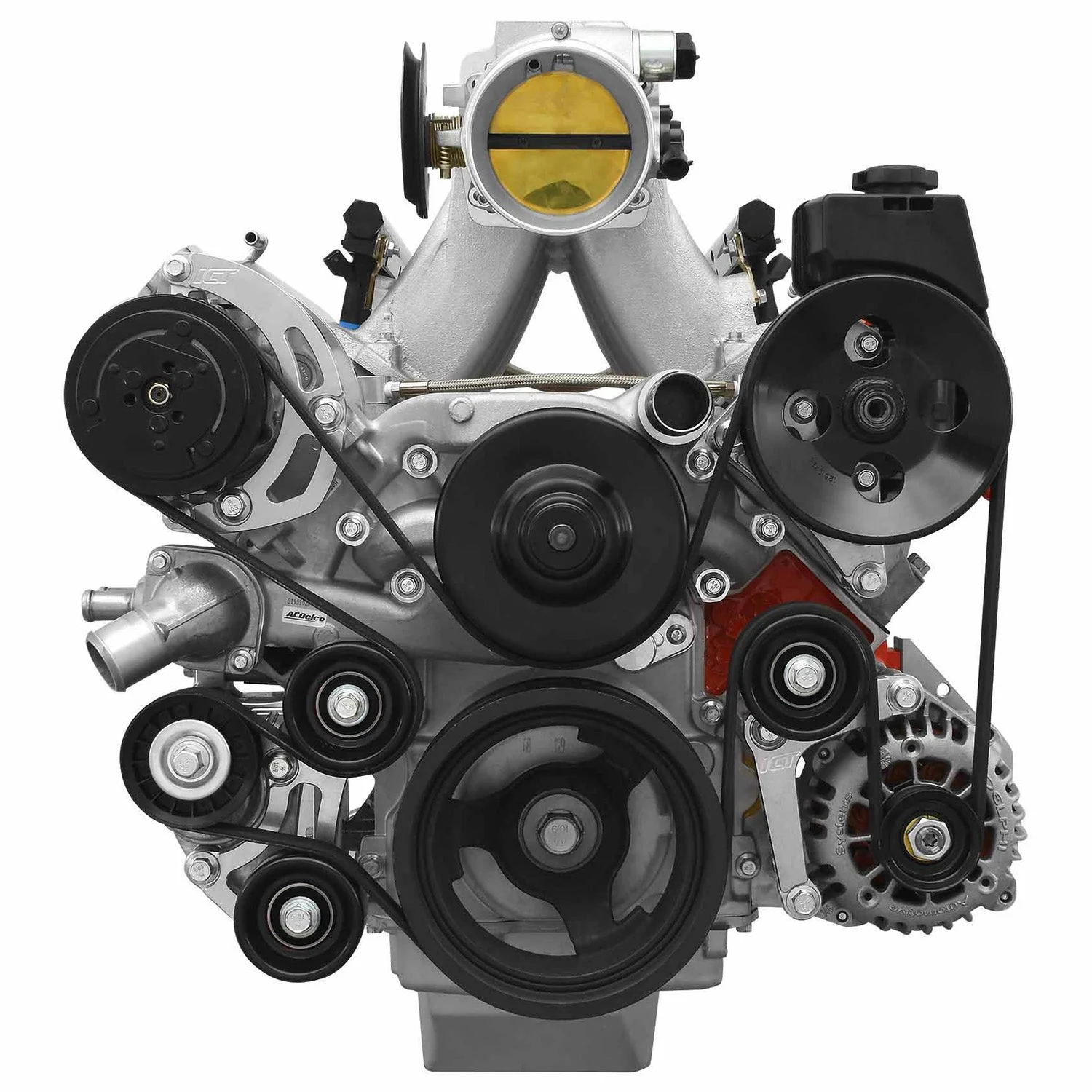

Mounts a Sanden 7176 compressor tight in front of the passenger cylinder head to provide more room to the side of the cylinder head. Great for turbo setups

• Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancer

• Compatible Water Pumps: LS Truck : Gen 3, Gen 4, LS3 Camaro, or LS1 Camaro with water pump spacers

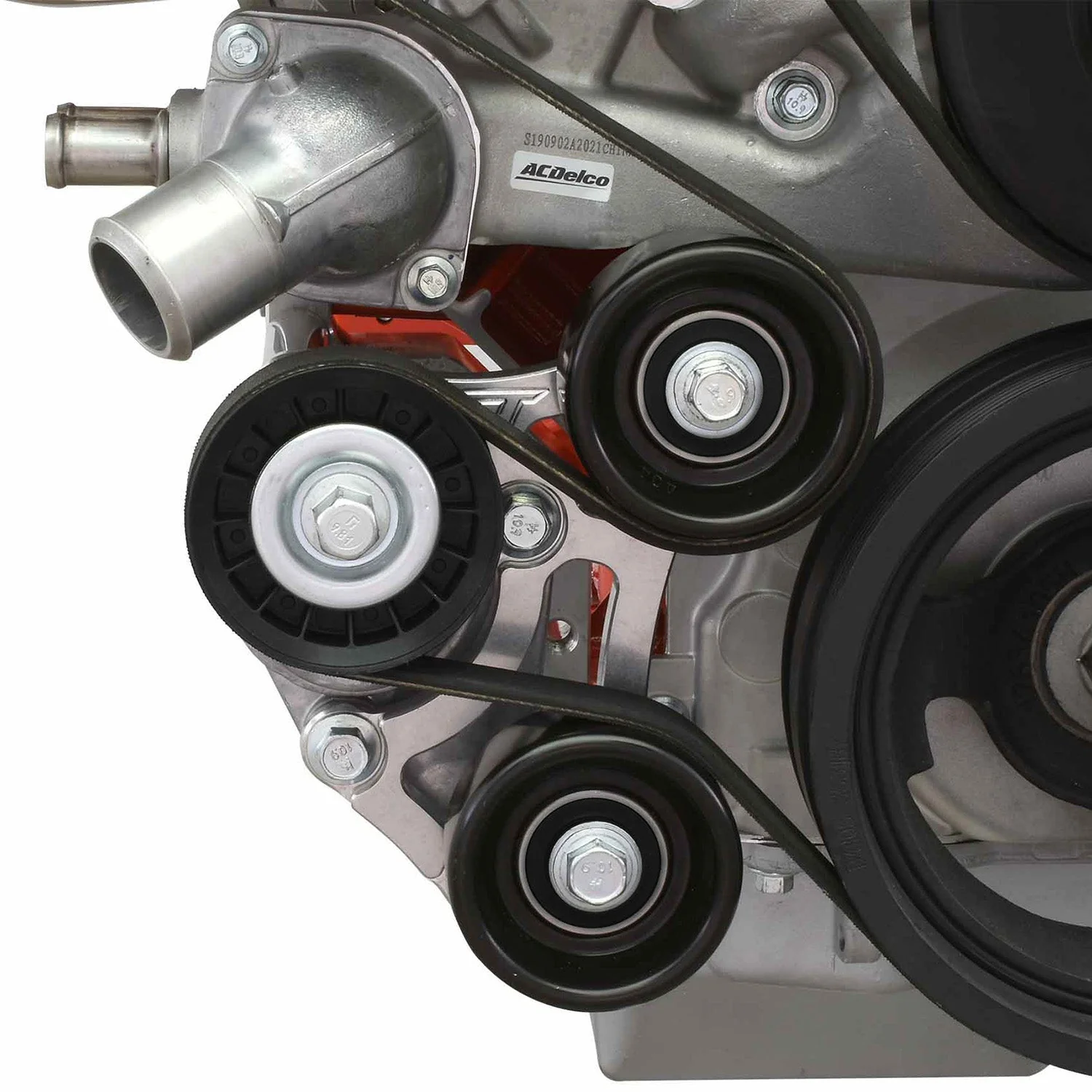

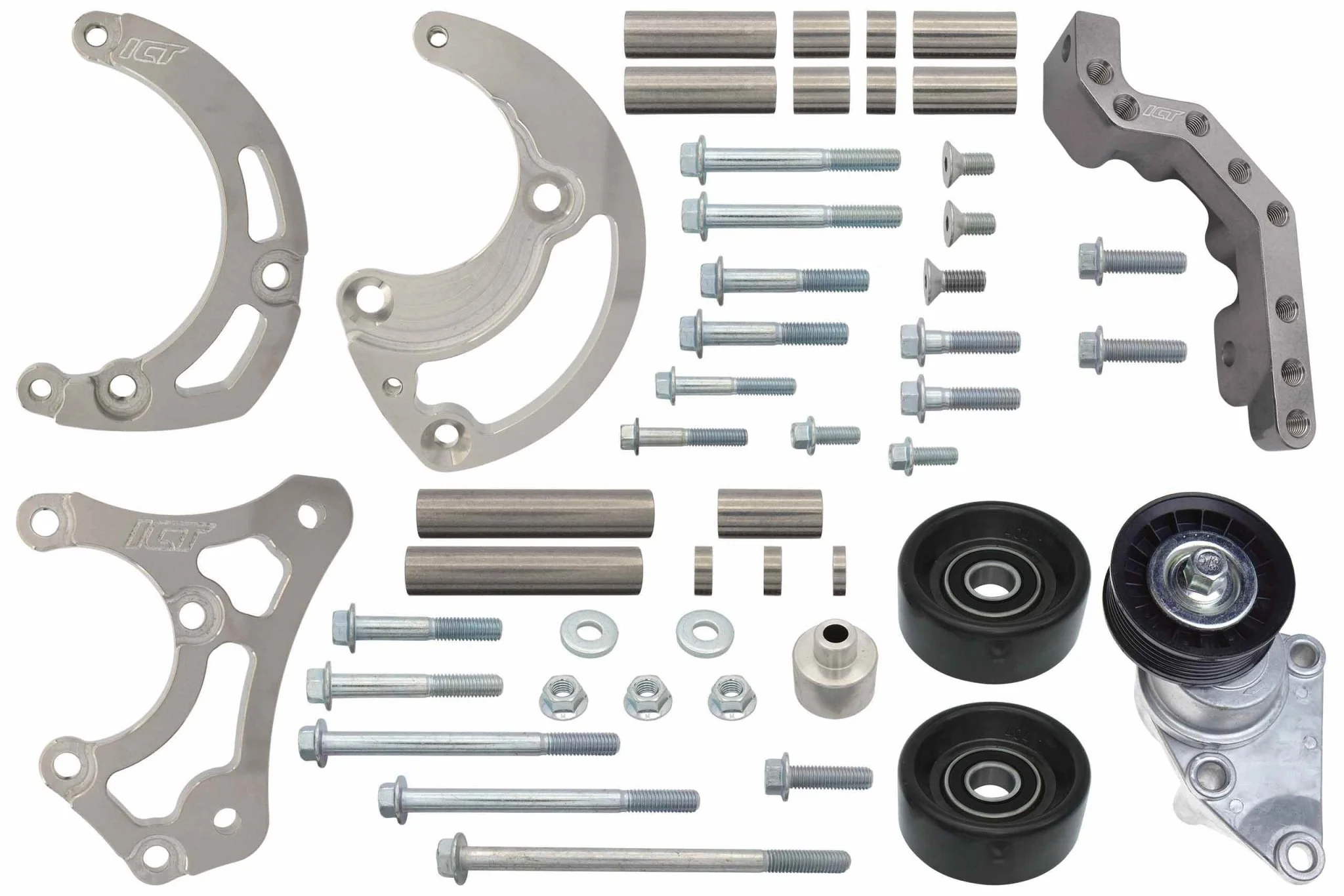

• Package includes: compressor bracket, tensioner and tensioner bracket, idler pulleys, and mounting hardware
• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum


Compatible with (based on vehicle 3D scans by ICT)

• Chevrolet Truck 47-55

Helpful Links & Guides

• Torque Specs: Flange bolts (M10 = 37 lb-ft, M8 = 18 lb-ft) FHSC bolts (M10 = 31 lb-ft)
• Belt length chart
• Replacement smooth pulley
• Billet smooth pulley
• Replacement bolt and spacer kit
• Instructions
