LS A/C Bracket Sanden 7176 - Truck Spacing (Low Mount)

LS - 4-Rib - Sanden 7176 Air Conditioner Compressor Bracket Kit - Truck Spacing

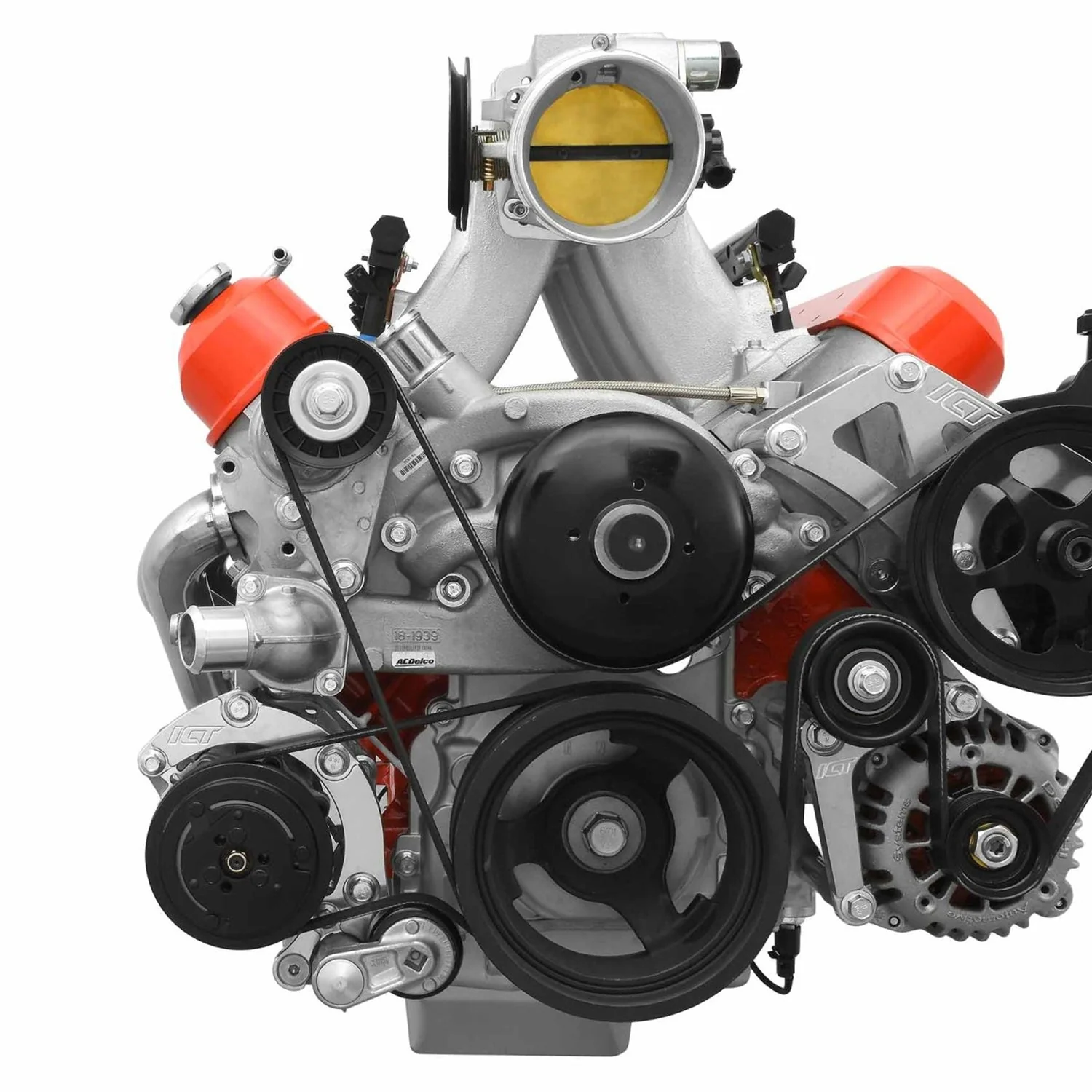

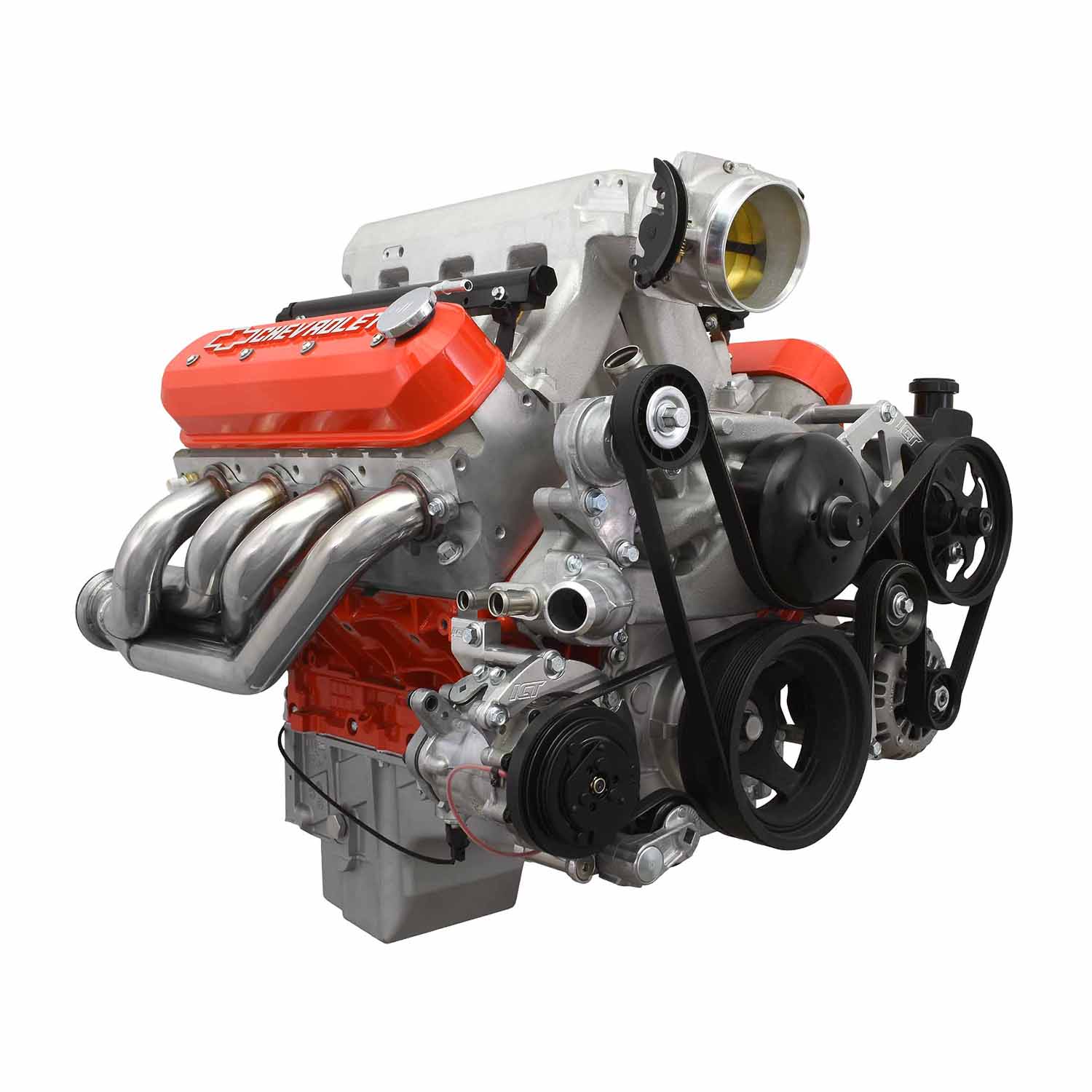

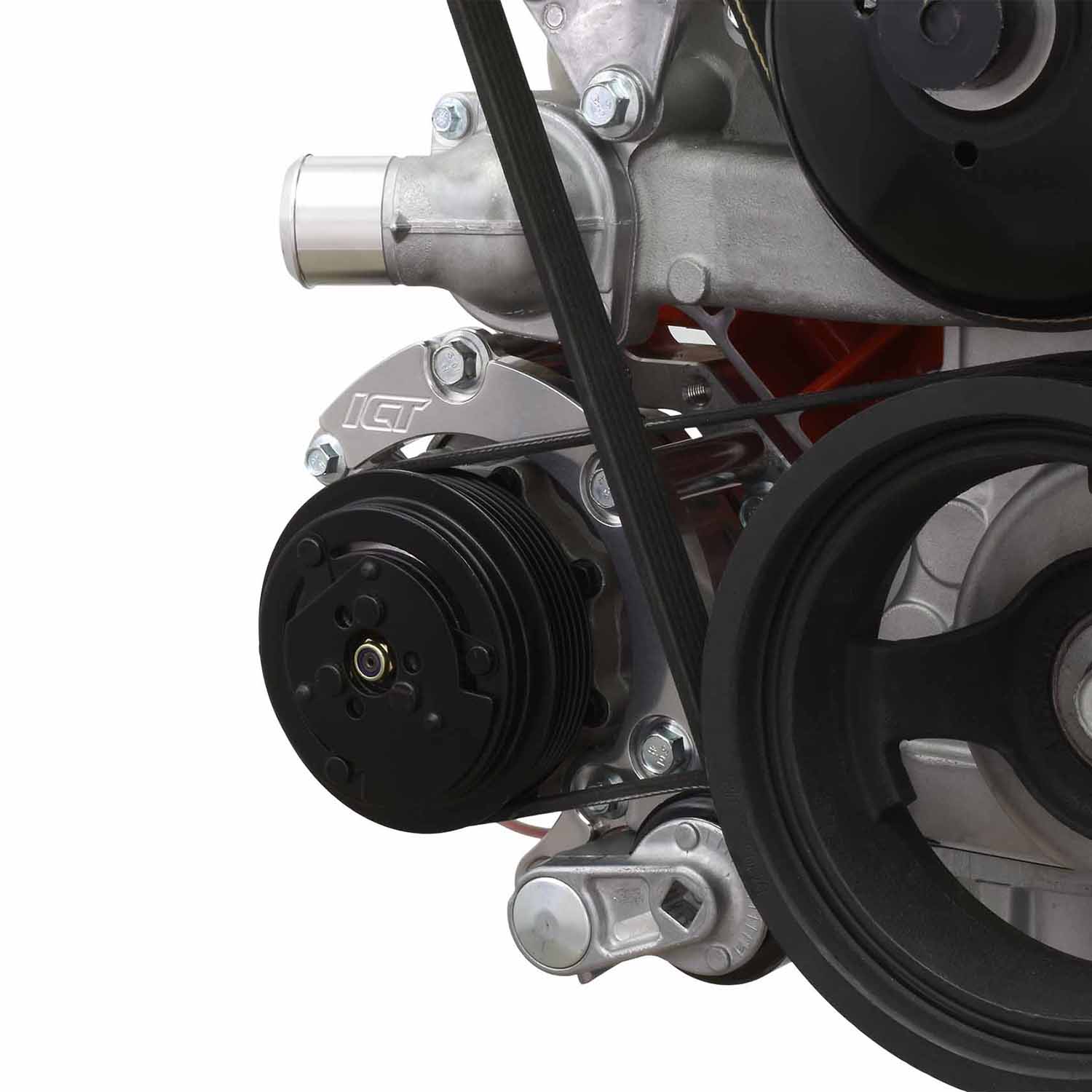

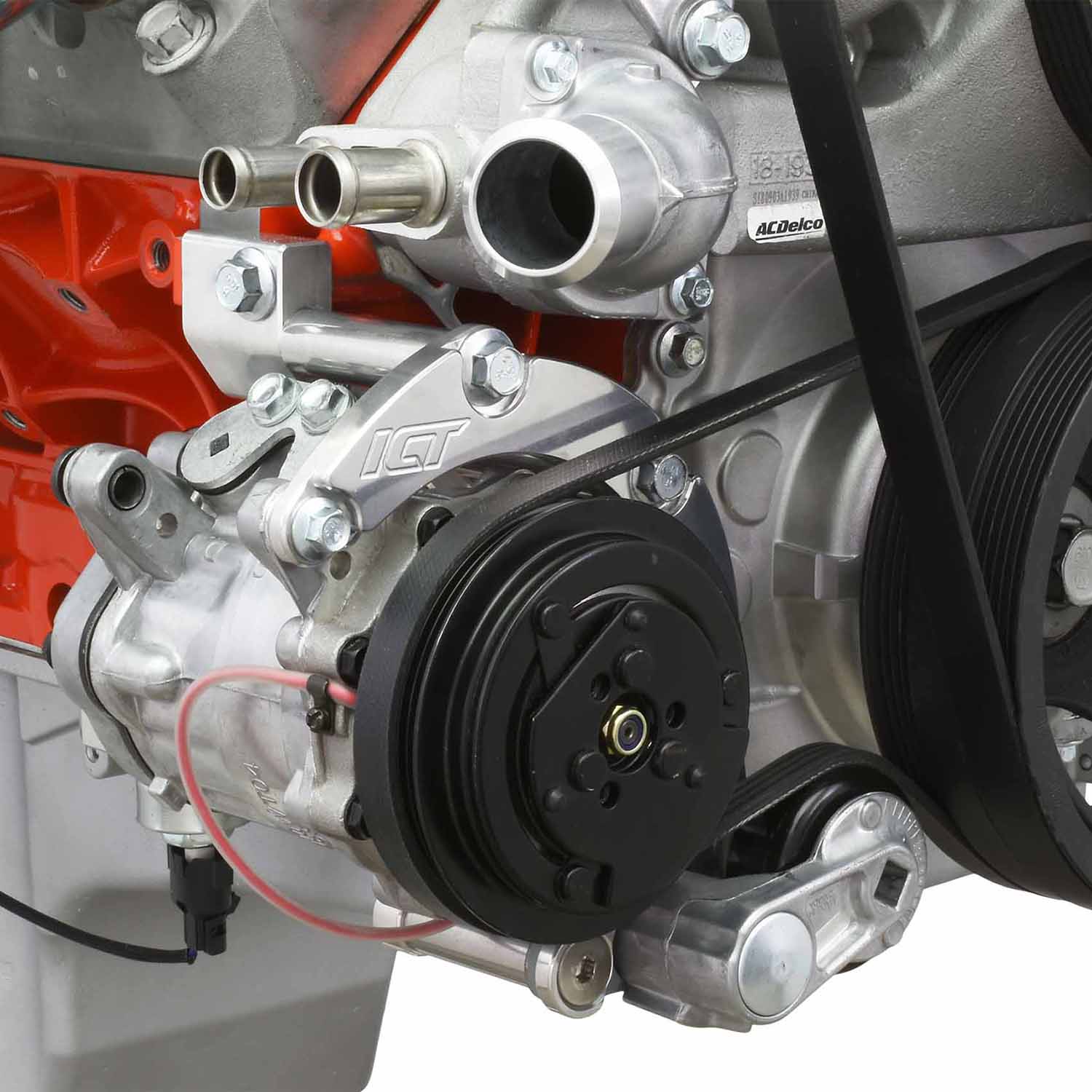

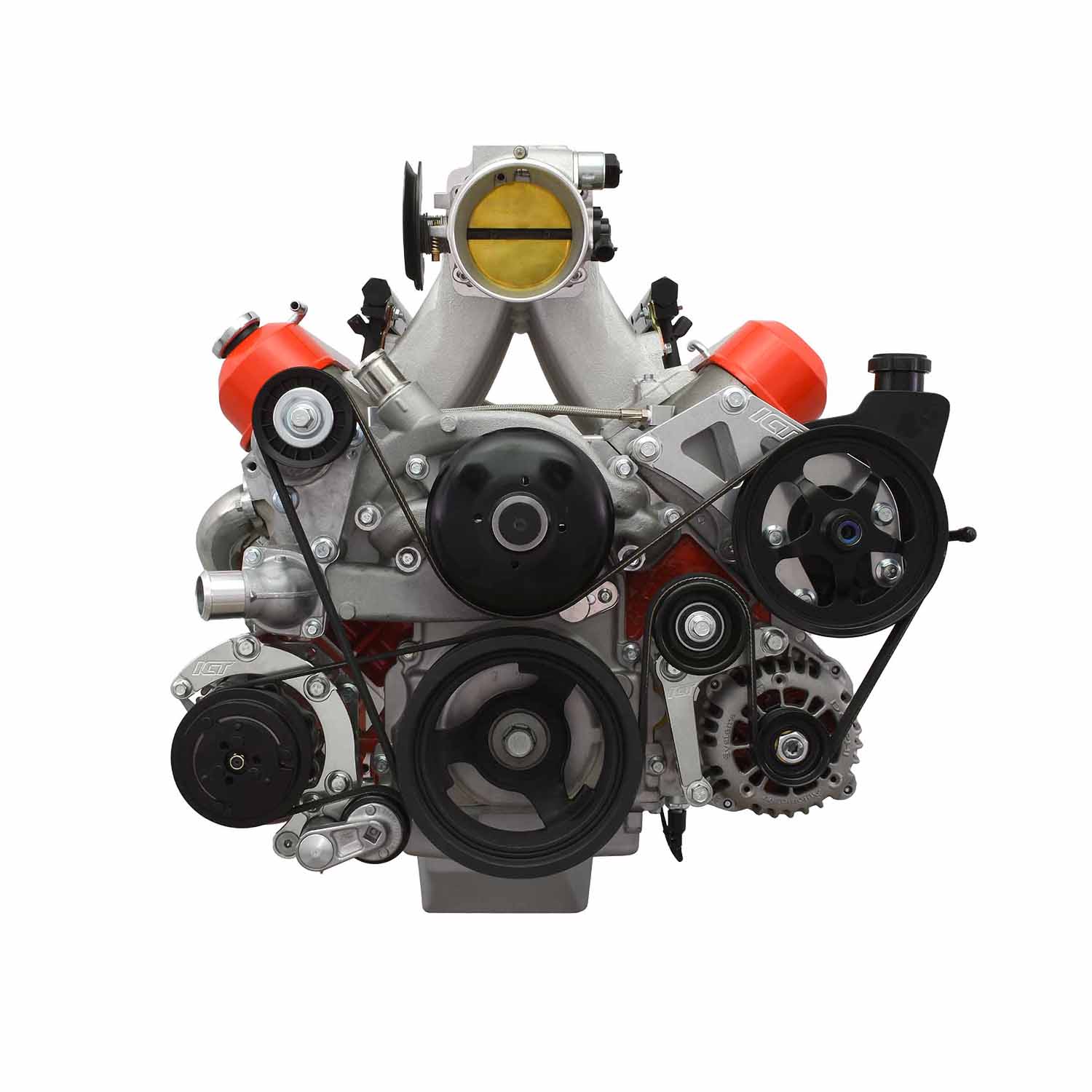

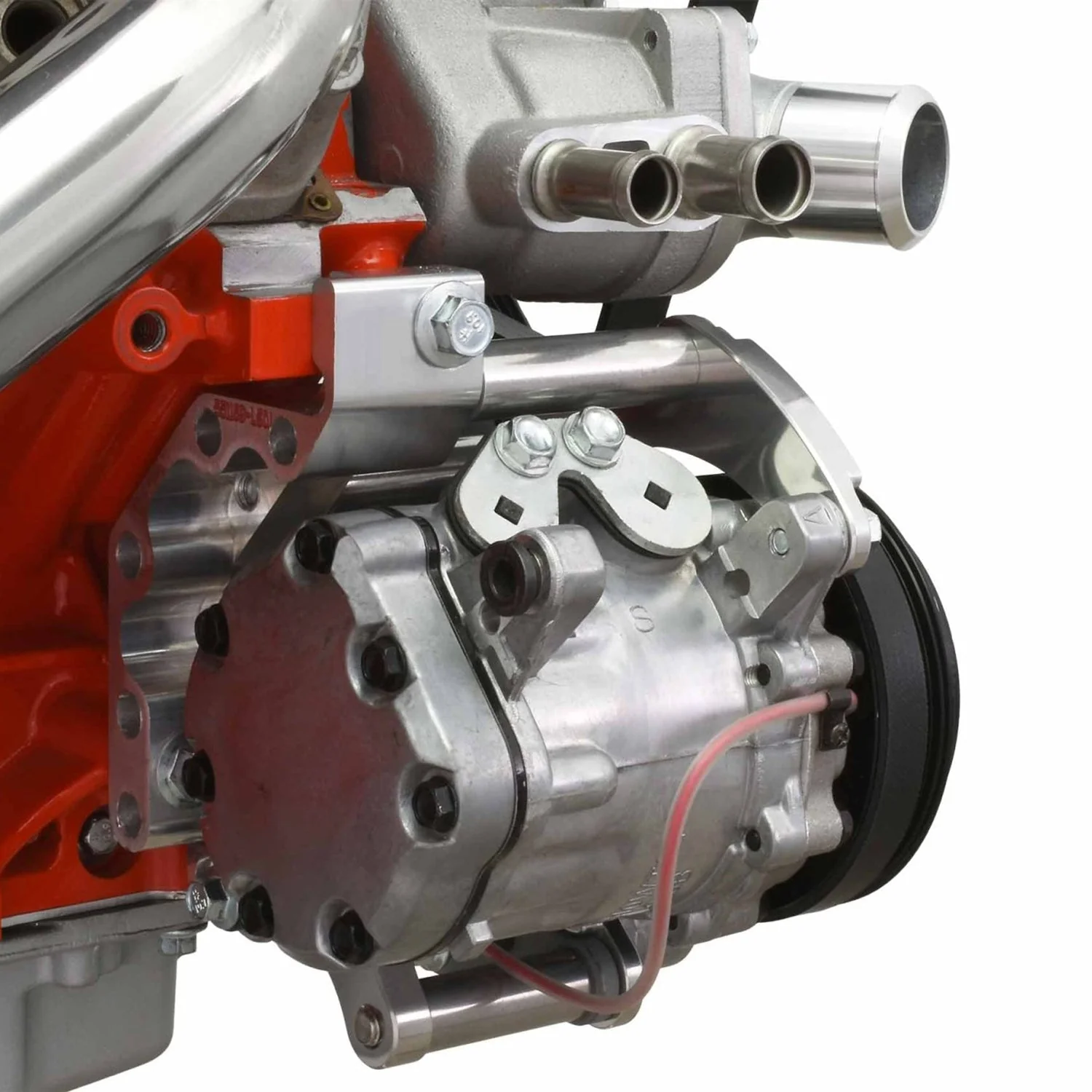

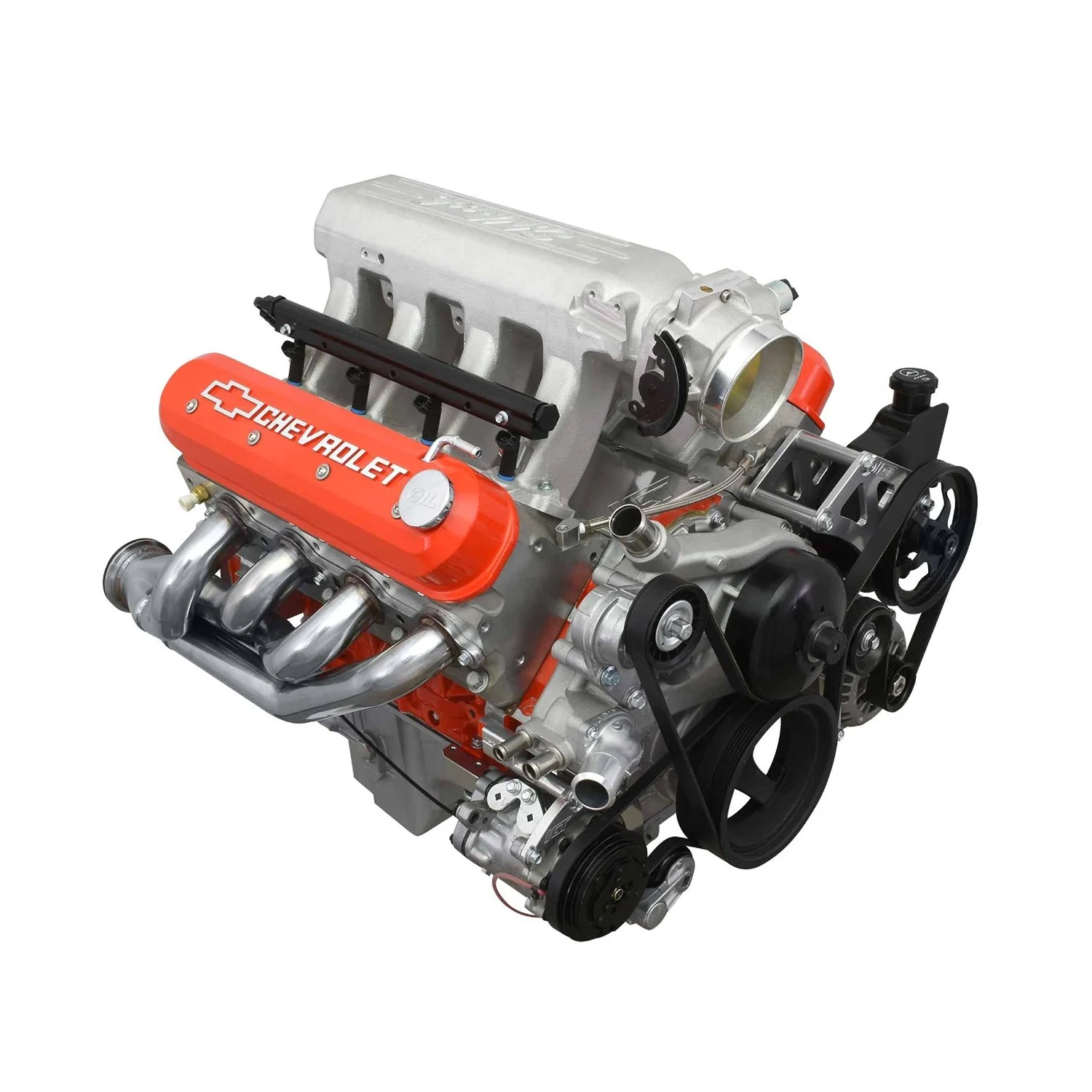

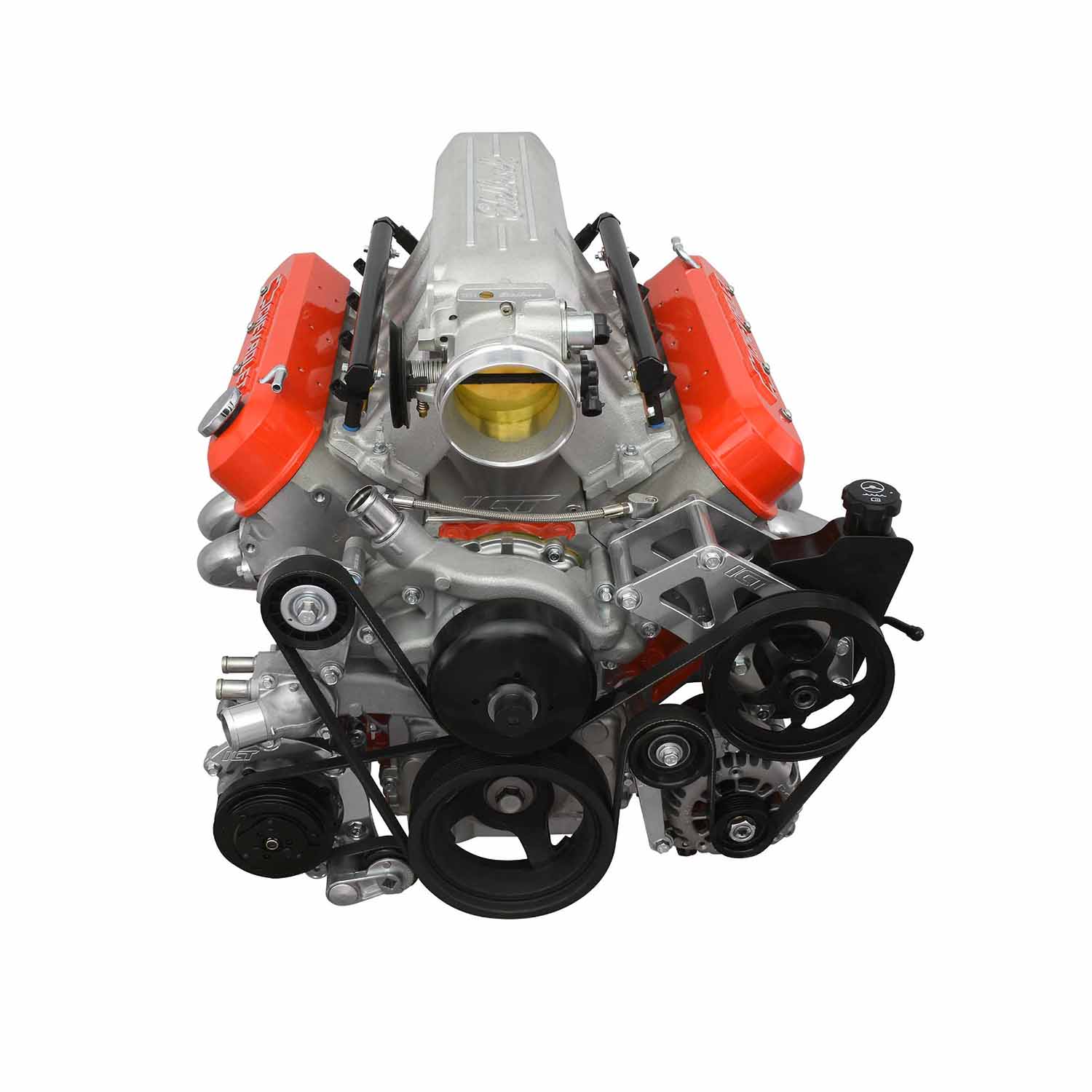

Mounts the aftermarket style "Sanden 7176" (SD7) compressor down low on the passenger side in the factory LS compressor location

• Aligns compressor with the rear, 4-rib belt location on the crankshaft pulley
• Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancer

• Compatible with Sanden 7176 SD7 AC compressors (NOT compatible with factory LS compressors)
• Compatible with factory small block Chevy motor mount location using ICT Billet LS adjustable swap plates or solid steel mounts

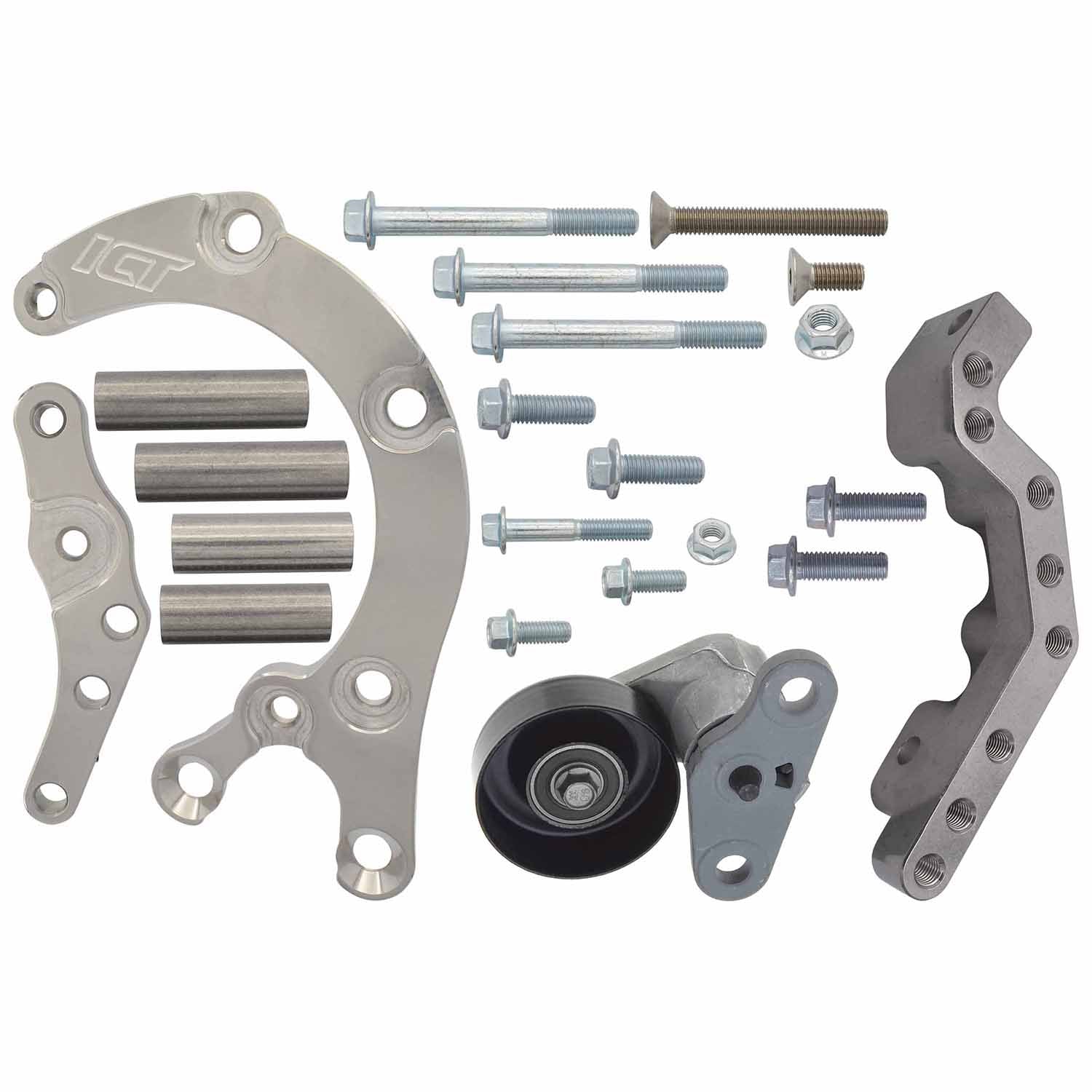

• Includes: bracket, mounting hardware, and belt tensioner
• Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum

Helpful Links & Guides

• Torque Specs: Flange bolts (M10 = 37 lb-ft, M8 = 18 lb-ft) FHSC bolts (M10 = 31 lb-ft)
• Belt length chart
• Replacement tensioner
• Replacement bolt and spacer kit
• Instructions
