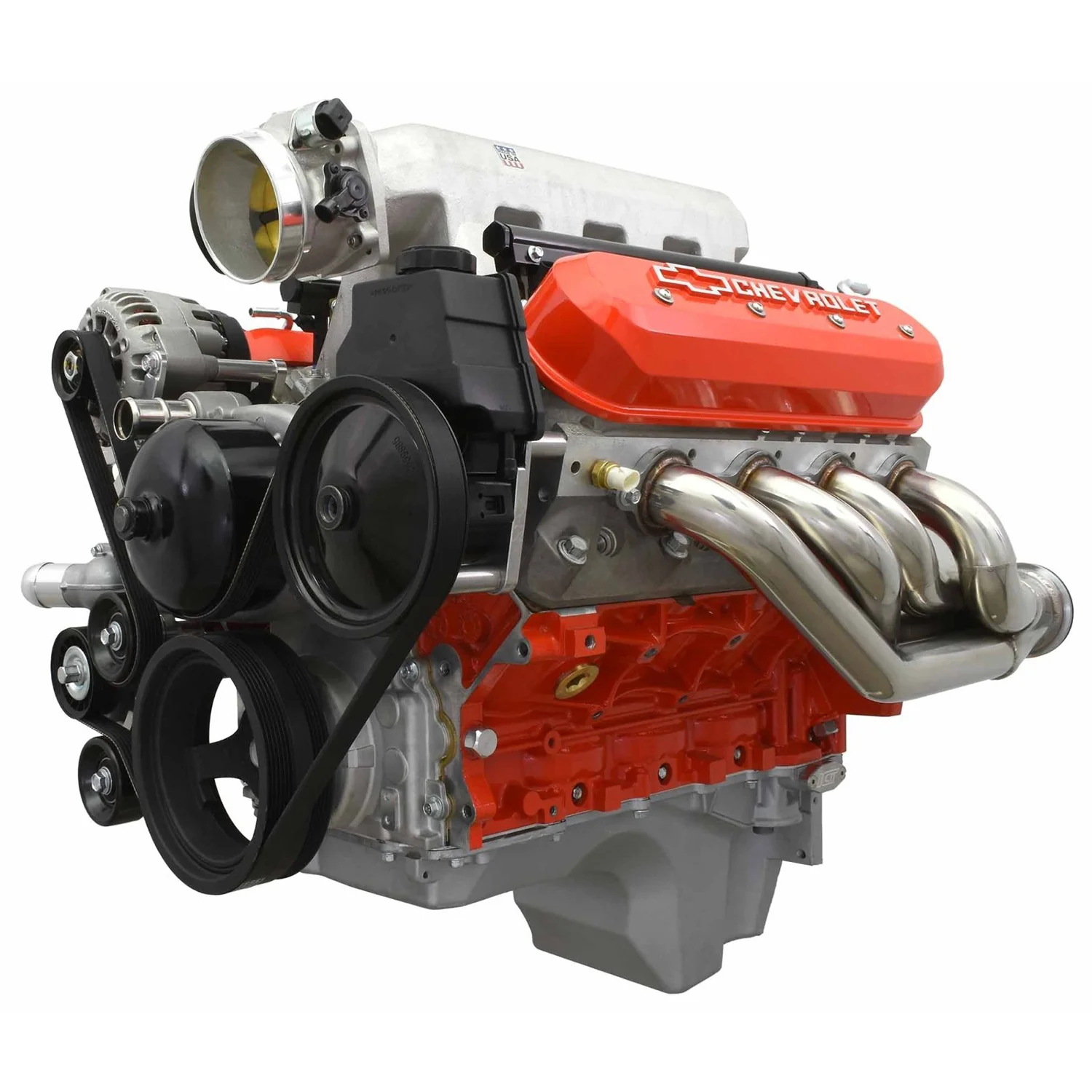

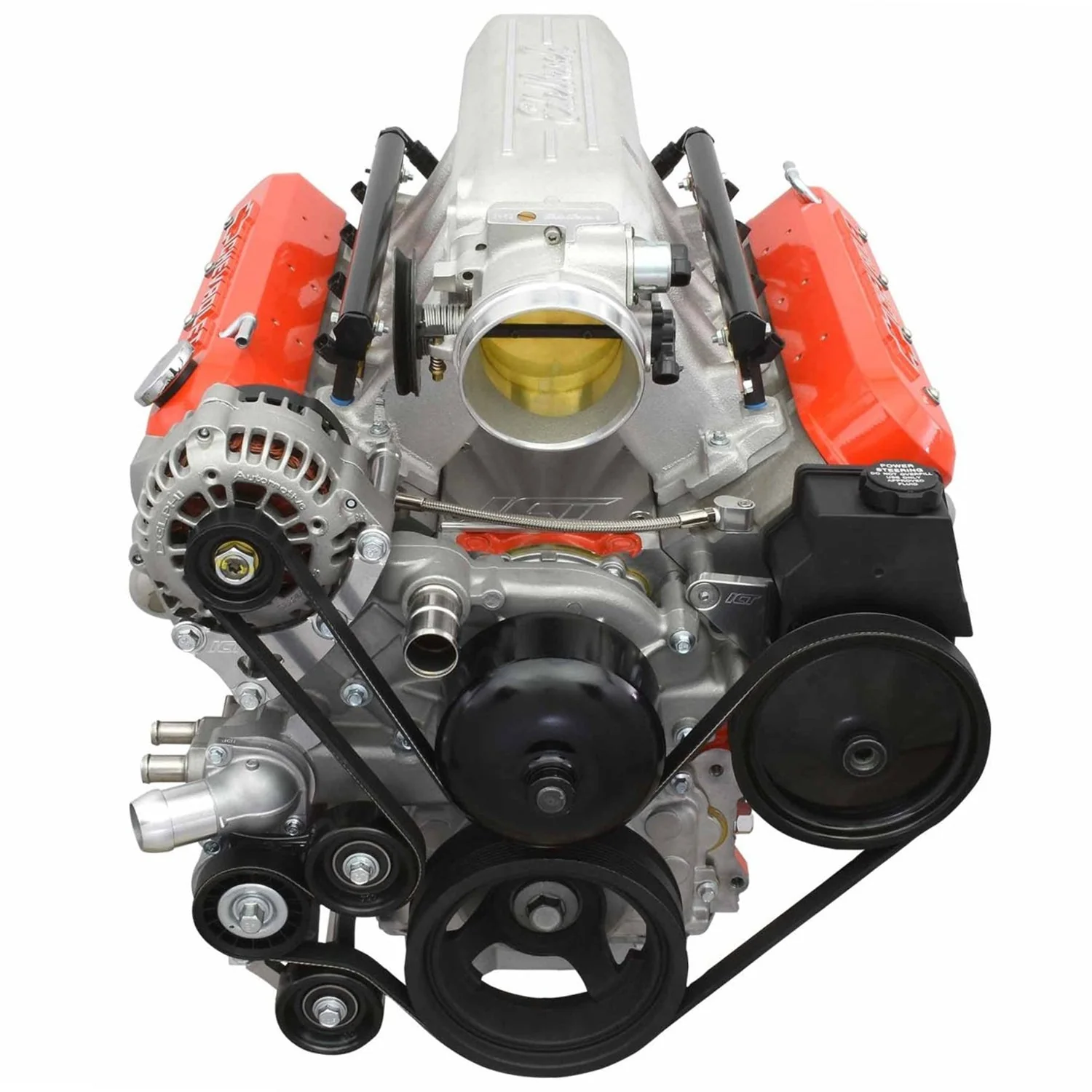

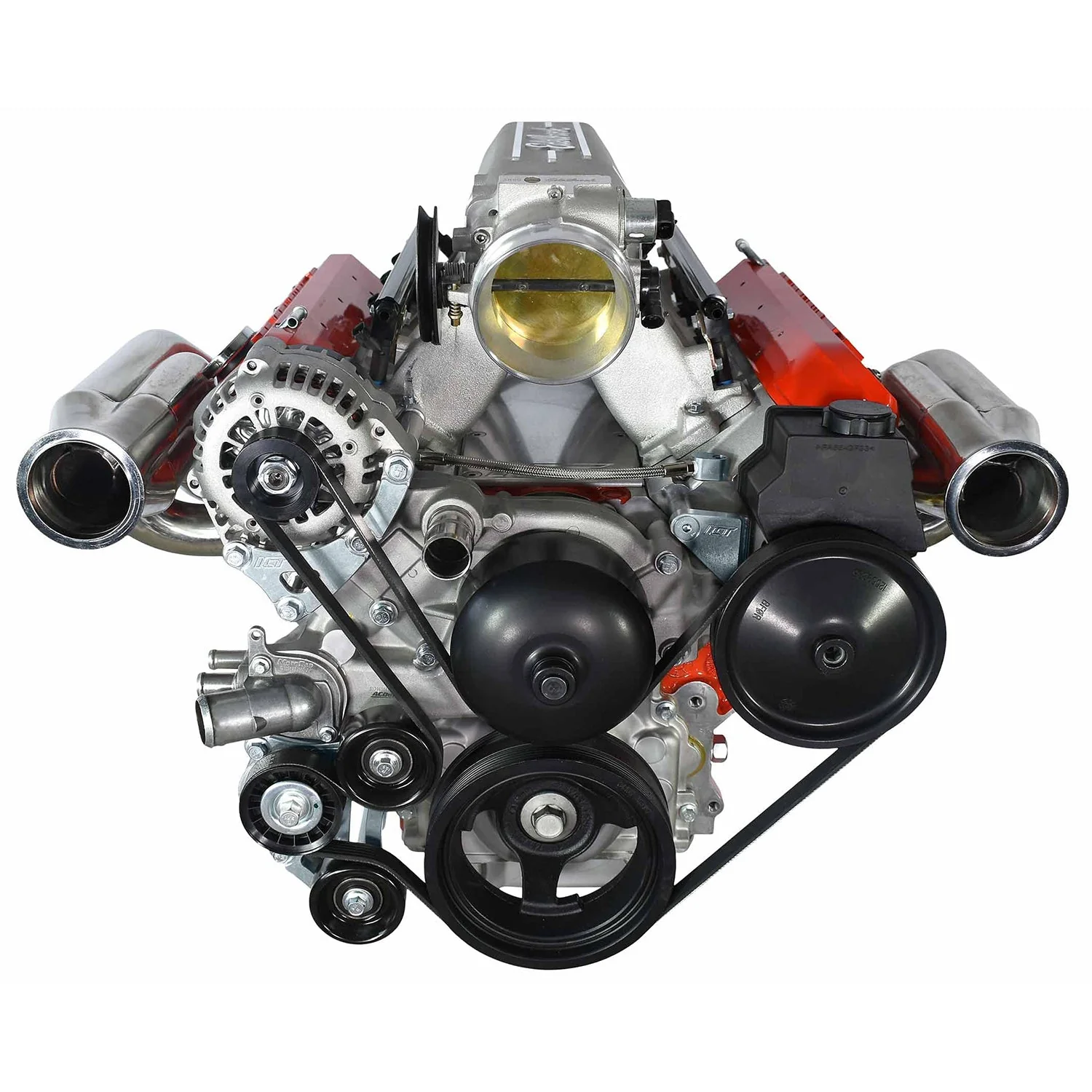

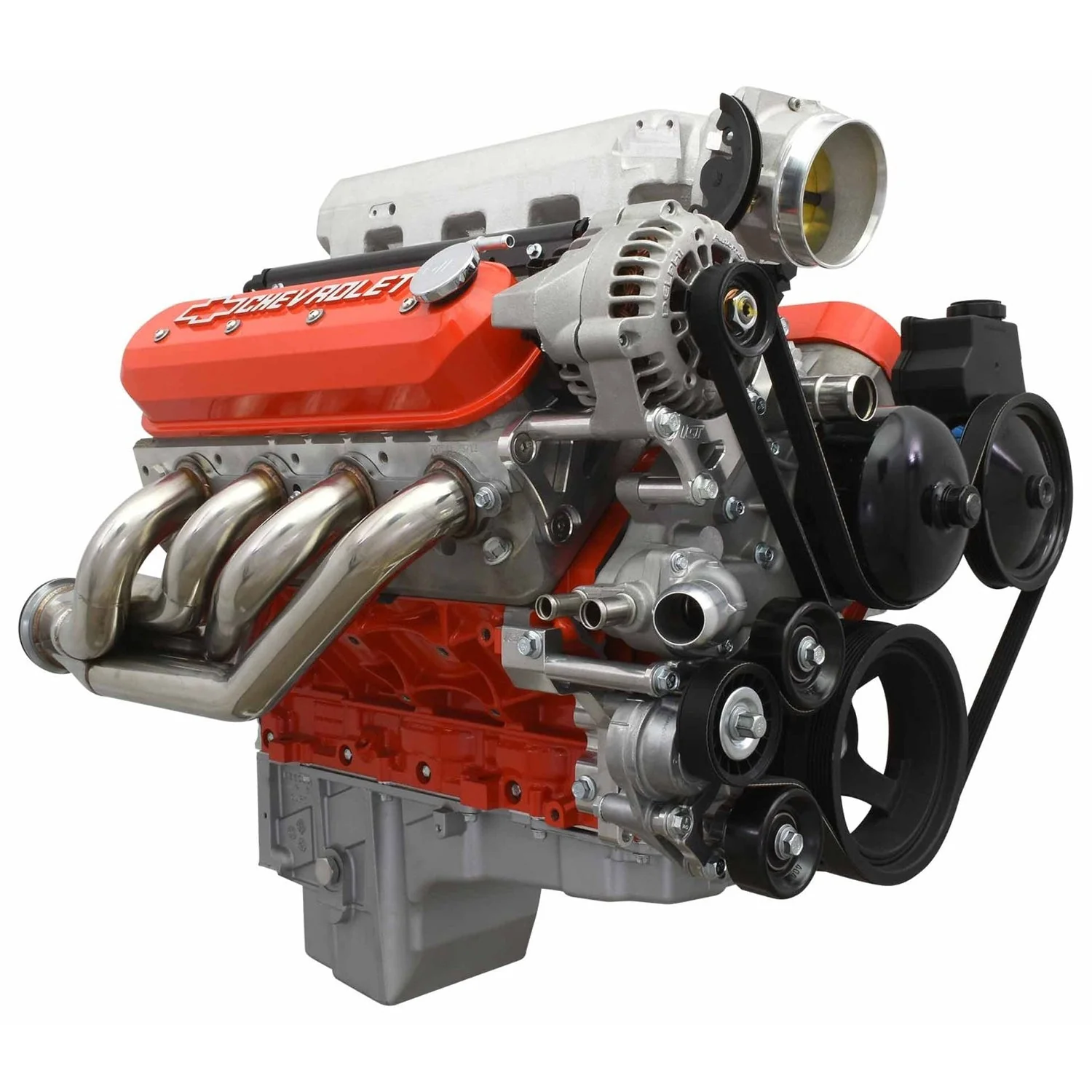

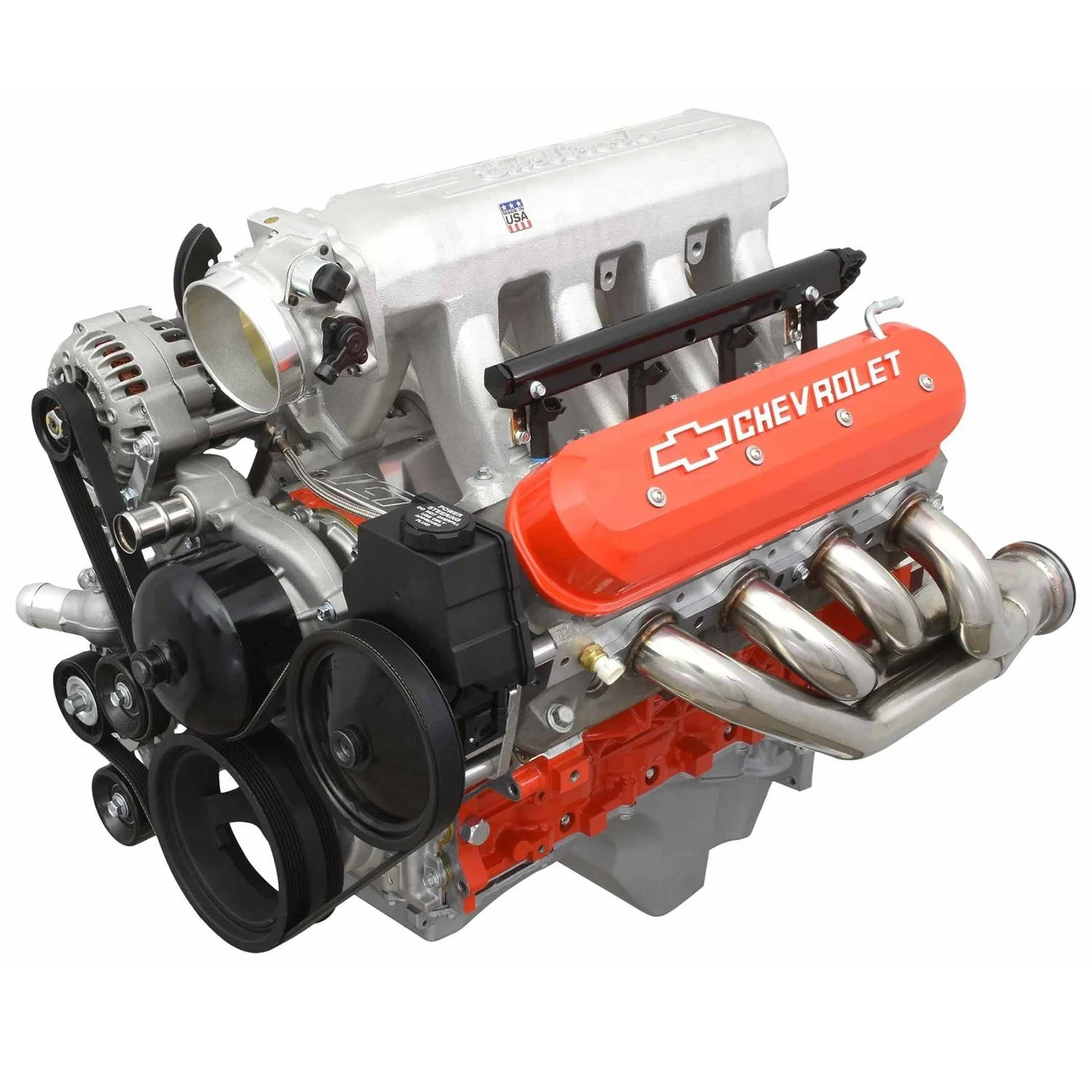

LS Truck Turbo - Alternator / Power Steering Bracket Kit for LS1 LS3 Water Pump

LS Alternator and Power Steering Pump Bracket Kit

with Tensioner for use with LS1 Camaro or LS3 Camaro Water Pumps

• Used for relocating the alternator and power steering pump close to the engine centerline to clear turbo headers
• Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum. This kit includes USA made belt tensioner, idler pulleys, and metric flange bolts
• Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancer

• Compatible with:
  • Compatible with 1998-02 LS1 Camaro power steering pump and pulley (or billet 2pc pulley)

  • Compatible with all LS alternators (Except Corvette, CTS-V or 10-15 Camaro)

  • LS1 '98-'02 Camaro water pump (WAT200) (this kit includes water pump spacers) and LS3/L99 Camaro water pump (WAT302-spacers not needed)
  • **Bracket kit not compatible with any other water pump.
• Fits all LS series engines
• Includes mounting brackets, tensioner, idlers pulleys, and all mounting hardware
• Optional A/C bracket (not compatible 4-rib A/C brackets)

• optional LS throttle body rotation adapter is needed when using LS3 Camaro intake manifold and throttle body

• Fits cast or billet turbo oil drain timing covers

Helpful Links & Guides

• Belt length chart
• Replacement smooth pulley
• Billet smooth pulley

• Replacement bolt and spacer kit
• Optional alternator wire harness extension: 4 pin connector or 2 pin
• Replacement bolt and spacer kit for alternator or power steering bracket
• Instructions
