LS Truck - Alternator & LS1 Camaro Power Steering Pump Bracket

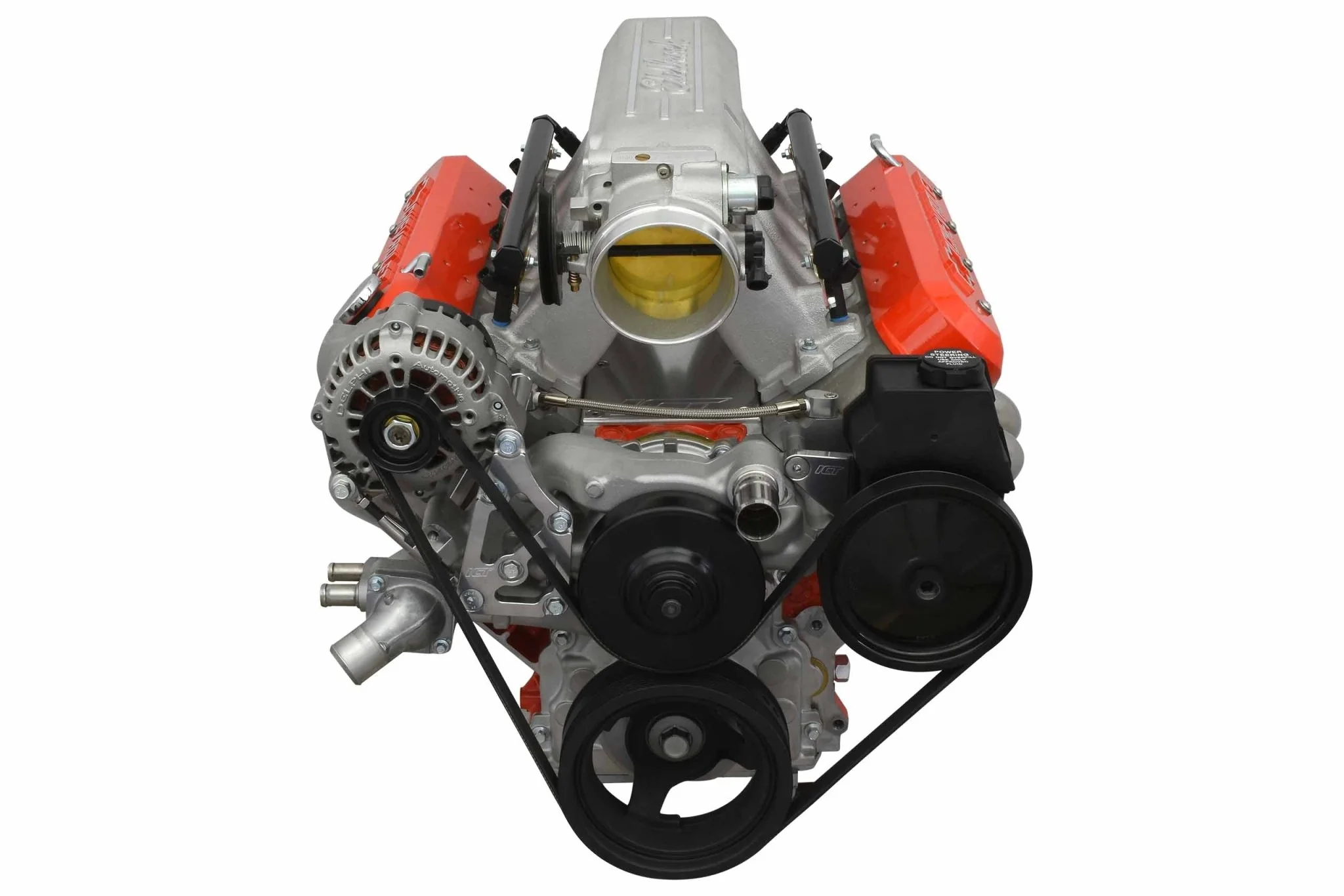

LS Alternator and LS1 Camaro Power Steering Pump Bracket Kit

Product Details:

• Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancer

• Compatible with 1998-02 LS1 Camaro power steering pump and pulley (or billet 2pc pulley)

• Compatible with 105 amp case alternator will NOT fit large case or Corvette/CTSV 2010-15 Camaro bolt pattern alternators.
• Only compatible with LS Gen 3 Truck water pump, and LS3 Camaro water pump.

*If using Truck water pump it must use GM/ACDelco for proper fitment

• Compatible with all LS series engines

• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum
• Belt length with 105amp alternator: 66.0" (660K6)
• optional LS throttle body rotation adapter is needed when using LS3 Camaro intake manifold and throttle body

Helpful Links & Guides

• Torque specs: Flange bolts (M10 = 37 lb-ft, M8 = 18 lb-ft), FHSC bolts (M10 = 31 lb-ft)
• Belt length chart
• Replacement bolt and spacer kit
• Replacement tensioner
• Optional alternator wire harness extension: 4 pin connector or 2 pin
• Optional high amp alternators that uses 105amp case: 165a PowerMaster, 170a Mechman, 240a Mechman
• Replacement bolt and spacer kit for alternator or power steering bracket
• Instructions
