LS/LT1 4-Bolt Intake to 3-Bolt DBC Throttle Body Adapter

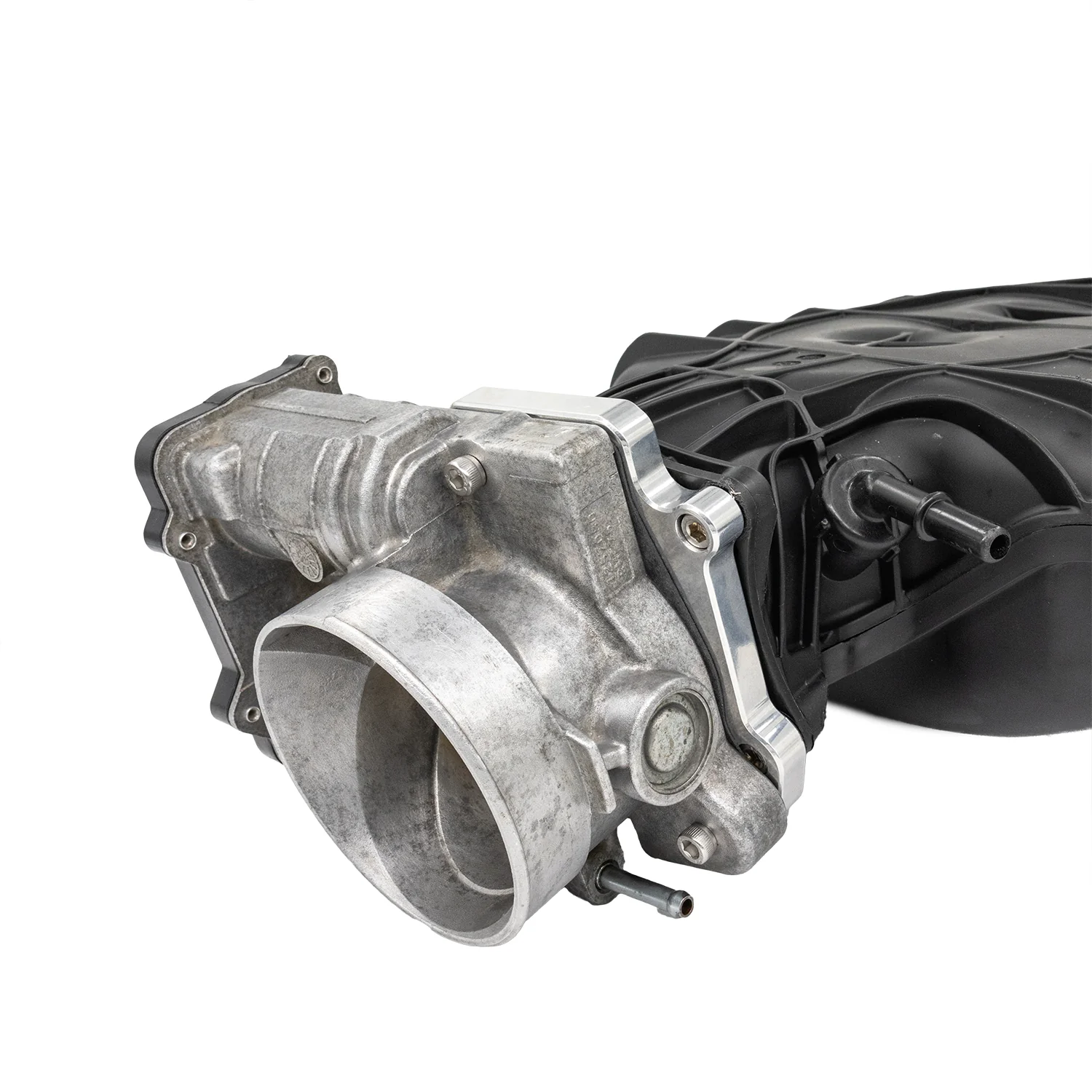

LS/LT1 4-Bolt Intake Manifold to 3-Bolt DBC Throttle Body Adapter

Product Details:

*NOT compatible with electronic throttle bodies

• 75mm through-hole (not tapered)
• Compatible with 75mm LS 3-bolt throttle bodies with mechanical throttle cable (DBC)
• Compatible with 85-103mm intake manifold LS 4-bolt (except LS4) and Gen V: LT1, LT2, LT4, L86, L87, L8B, L8P, L8T
• Avoids the need for TAC module and accelerator pedal conversions in LS-to-LT swaps
• Made in Wichita, Kansas, from 3/8" thick 6061-T6 USA produced billet aluminum
• Includes: adapter, gasket, and mounting bolts


Helpful Links

• Torque bolts to 106 lb-in
• Replacement gasket
