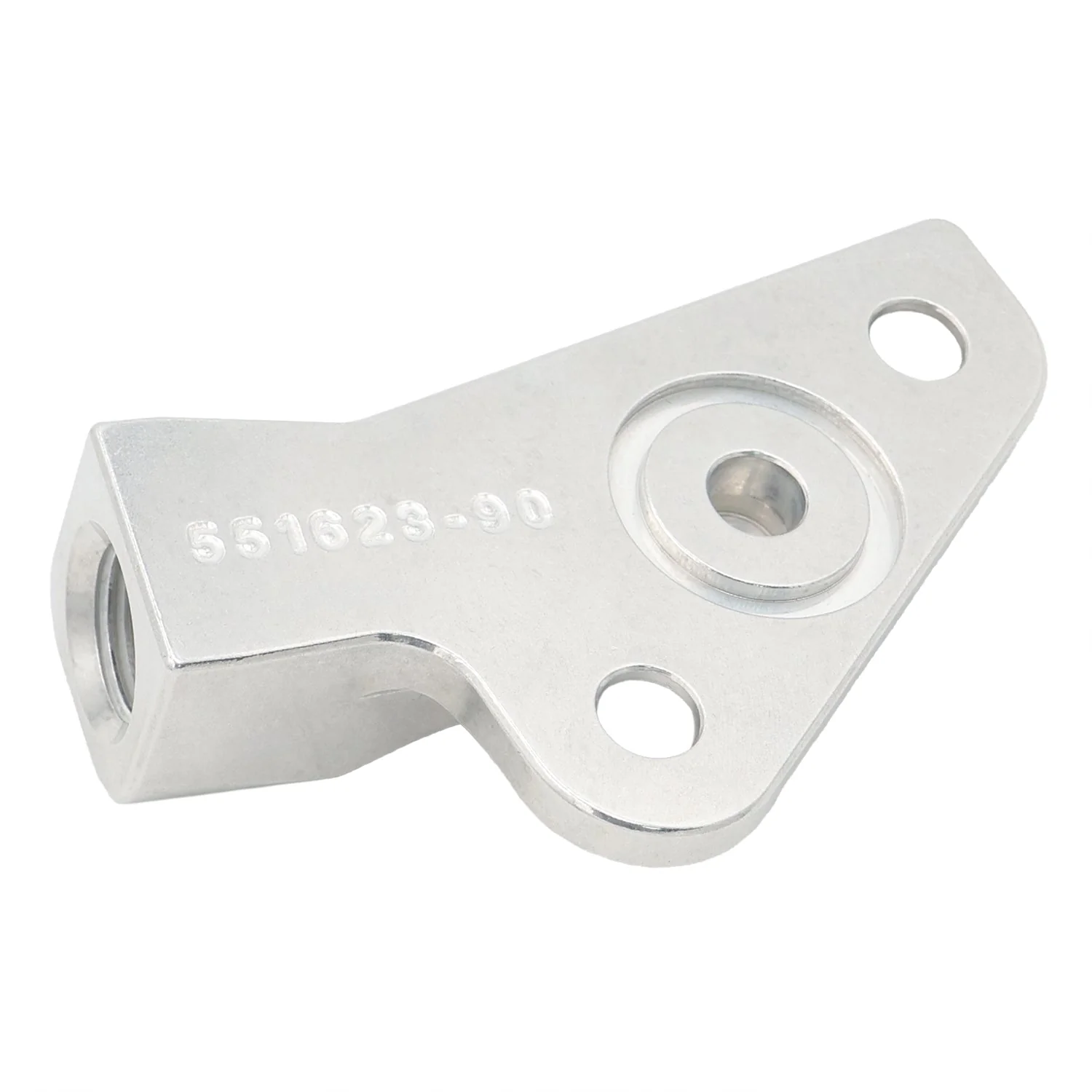

Oil Pressure Sensor Adapter Port - For Gen 4 LS Valley Pan - M16-1.5 90 Degree

Oil Pressure Sensor Adapter Port

Must drill hole approx 1/4" diameter in valley pan for oil pathway to sensor. (All ICT valley pans have the hole center marked)

• Compatible with ICT LS valley covers (must drill hole in valley cover if not present)
• Compatible with all years factory LS oil pressure sensors
• M16-1.5 thread
• Allows factory Gen 4 oil pressure sensor location on ICT valley pans

Helpful Links

• Torque bolts to 18 ft-lbs
• Replacement -117 oring
• Optional oil pressure sensor relocation adapter to oil pan, or valley cover mounted sensor (must drill hole in valley cover) adapter: straight M16-1.5mm or 1/8" NPT (or 90 degree M16-1.5mm / 1/8"NPT)
